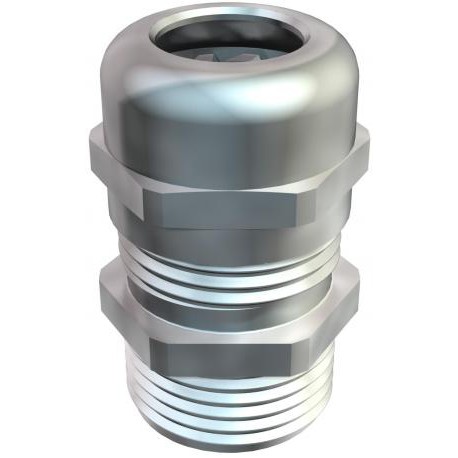

V-TEC L PG29 MS 2085798 OBO BETTERMANN Cable gland with long connection thread, PG29, Nickel-plated, Brass, ..
V-TEC L PG29 MS
2085798
OBO BETTERMANN
10 Pcs.
Cable gland with long connection thread, PG29, Nickel-plated, Brass, CuZn
Cap nut cable gland, PG thread, long, nickel-plated. Cable gland of cap-nut design with large sealing area, and strain relief and torsion protection for high sealing demands with long Pg connection thread to DIN 40430, for thicker housing wall thicknesses in connection with locknut.Polyamide terminal insert.Sealing ring of chloroprene/nitrile rubber.O ring pre-mounted on connection thread.Protection rating IP 68 at 5 bar: 1 hr.Tested to DIN EN 62444.With long connection thread. * Prices according to DEL notation.
Cables > Cable gland
metal Gls
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4261 kg CO2e / 1 Piece |
| Dimension | PG29 |
| Dimension E | 43,5 mm |
| Dimension L max. | 39 mm |
| Dimension L1 | 12 mm |
| Dimension L2 | 5 mm |
| Dimension L3 | 23 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | no |
| Impact-resistant | no |
| Material | Brass |
| Nominal thread size | 29 |
|---|---|
| Permitted temperature range, max. | 100 °C |
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP68 |
| Sealing area D, max. | 25 mm |
| Sealing area D, min. | 18 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | yes |
| Surface | Nickel-plated |
| Thread | Pg 29 |
| Thread length | 12 mm |
| Thread type | PG |
| Type of seal | Sealing ring |
| Version for | Straight |
| WAF | 40 |
| With locknut | no |
