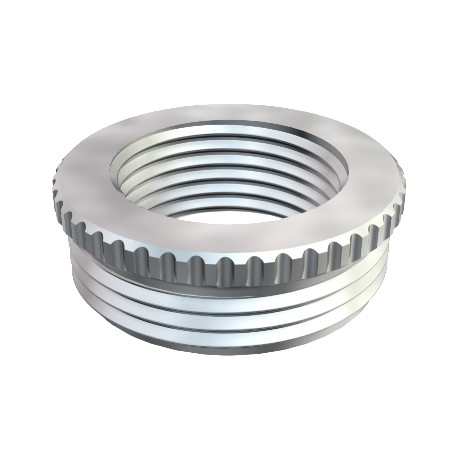

OBO BETTERMANN 167 R MS PG9-7 167 R MS PG9-7 2089025 OBO BETTERMANN Reduction , PG9-PG7, Nickel-plated, Brass, CuZn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

167 R MS PG9-7 2089025 OBO BETTERMANN Reduction , PG9-PG7, Nickel-plated, Brass, CuZn

167 R MS PG9-7

2089025

OBO BETTERMANN

50 Pcs.

Reduction , PG9-PG7, Nickel-plated, Brass, CuZn Reduction, PG thread. Reduction (Part H) to DIN 46320, with Pg thread to DIN 40430, as a transition from a PG thread hole to a smaller cable gland.* Prices according to DEL notation.

Cables > Enlargement/reducing ring
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This reduction is an essential industrial component used to connect cable entries of differing thread sizes in control panels and junction boxes. Manufactured by Obo Bettermann under part number 167 R MS PG9-7, it allows installers to securely step down threaded connections while maintaining the integrity of the enclosure housing.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0119 kg CO2e / 1 Piece
  • Dimension: PG9-PG7
  • Dimension D: 17 mm
  • Dimension L1: 6 mm
  • Dimension L2: 2,5 mm
  • explosion-proof: no
  • Material: Brass
  • Nickel-plated: yes
  • Surface: Nickel-plated
  • Thread dimension, PG, external: 9
  • Thread dimension, PG, internal: 7
  • Thread length: 6 mm
  • Thread type: External thread: PG
  • Thread type: Internal thread: PG

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0119 kg CO2e / 1 Piece
DimensionPG9-PG7
Dimension D17 mm
Dimension L16 mm
Dimension L22,5 mm
explosion-proofno
MaterialBrass
Nickel-platedyes
SurfaceNickel-plated
Thread dimension, PG, external9
Thread dimension, PG, internal7
Thread length6 mm
Thread type: External threadPG
Thread type: Internal threadPG
