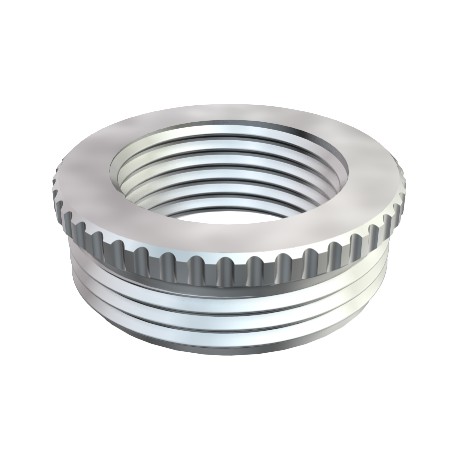

OBO BETTERMANN 167 R MS PG48-36 167 R MS PG48-36 2089424 OBO BETTERMANN Reduction , PG48-PG36, Nickel-plated, Brass, CuZn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

167 R MS PG48-36 2089424 OBO BETTERMANN Reduction , PG48-PG36, Nickel-plated, Brass, CuZn

167 R MS PG48-36

2089424

OBO BETTERMANN

25 Pcs.

Reduction , PG48-PG36, Nickel-plated, Brass, CuZn Reduction 167 R MS PG48-36 PG48-PG36 Brass, CuZn nickel-plated Reduction, PG thread. Reduction (Part H) to DIN 46320, with Pg thread to DIN 40430, as a transition from a PG thread hole to a smaller cable gland.* Prices according to DEL notation.

Cables > Enlargement/reducing ring
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Heavy-duty thread reductions are implemented in large plant engineering projects to step down oversized conduit connections to specified dimensions. This large-format brass Obo Bettermann component offers high mechanical stability.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,3455 kg CO2e / 1 Piece
  • Dimension: PG48-PG36
  • Dimension D: 64 mm
  • Dimension L1: 10 mm
  • Dimension L2: 4 mm
  • explosion-proof: no
  • Material: Brass
  • Nickel-plated: yes
  • Surface: Nickel-plated
  • Thread dimension, PG, external: 48
  • Thread dimension, PG, internal: 36
  • Thread length: 10 mm
  • Thread type: External thread: PG
  • Thread type: Internal thread: PG

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,3455 kg CO2e / 1 Piece
DimensionPG48-PG36
Dimension D64 mm
Dimension L110 mm
Dimension L24 mm
explosion-proofno
MaterialBrass
Nickel-platedyes
SurfaceNickel-plated
Thread dimension, PG, external48
Thread dimension, PG, internal36
Thread length10 mm
Thread type: External threadPG
Thread type: Internal threadPG
