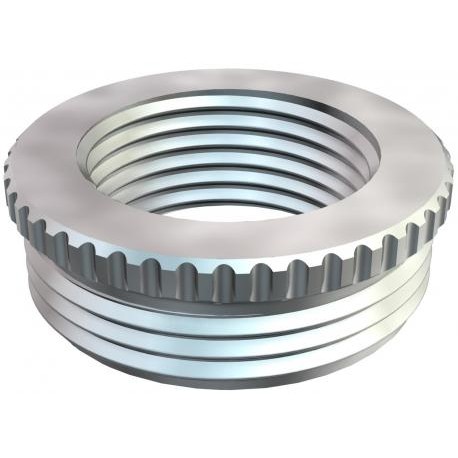

OBO BETTERMANN 167 R MS PG36-21 167 R MS PG36-21 2089335 OBO BETTERMANN Reduction , PG36-PG21, Nickel-plated, Brass, CuZn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

167 R MS PG36-21 2089335 OBO BETTERMANN Reduction , PG36-PG21, Nickel-plated, Brass, CuZn

167 R MS PG36-21

2089335

OBO BETTERMANN

25 Pcs.

Reduction , PG36-PG21, Nickel-plated, Brass, CuZn Reduction, PG thread. Reduction (Part H) to DIN 46320, with Pg thread to DIN 40430, as a transition from a PG thread hole to a smaller cable gland.* Prices according to DEL notation.

Cables > Enlargement/reducing ring
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Industrial junction box installations often require robust metal reductions to bridge large thread gaps for high-capacity wiring assemblies. Part 167 R MS PG36-21 from Obo Bettermann provides a durable, nickel-plated brass interface.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,3214 kg CO2e / 1 Piece
  • Dimension: PG36-PG21
  • Dimension D: 50 mm
  • Dimension L1: 9 mm
  • Dimension L2: 3,5 mm
  • explosion-proof: no
  • Material: Brass
  • Nickel-plated: yes
  • Surface: Nickel-plated
  • Thread dimension, PG, external: 36
  • Thread dimension, PG, internal: 21
  • Thread length: 9 mm
  • Thread type: External thread: PG
  • Thread type: Internal thread: PG

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,3214 kg CO2e / 1 Piece
DimensionPG36-PG21
Dimension D50 mm
Dimension L19 mm
Dimension L23,5 mm
explosion-proofno
MaterialBrass
Nickel-platedyes
SurfaceNickel-plated
Thread dimension, PG, external36
Thread dimension, PG, internal21
Thread length9 mm
Thread type: External threadPG
Thread type: Internal threadPG
