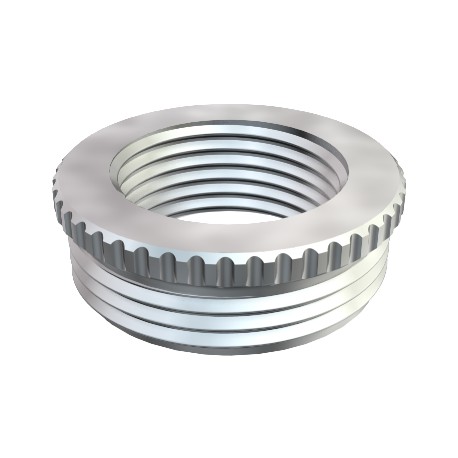

OBO BETTERMANN 167 R MS PG29-16 167 R MS PG29-16 2089297 OBO BETTERMANN Reduction , PG29-PG16, Nickel-plated, Brass, CuZn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

167 R MS PG29-16 2089297 OBO BETTERMANN Reduction , PG29-PG16, Nickel-plated, Brass, CuZn

167 R MS PG29-16

2089297

OBO BETTERMANN

50 Pcs.

Reduction , PG29-PG16, Nickel-plated, Brass, CuZn Reduction, PG thread. Reduction (Part H) to DIN 46320, with Pg thread to DIN 40430, as a transition from a PG thread hole to a smaller cable gland.* Prices according to DEL notation.

Cables > Enlargement/reducing ring
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

PG-threaded reduction components are essential for adjusting enclosure port sizes to match specific cable gland requirements in industrial control infrastructure. They provide durable mechanical performance and corrosion resistance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,175 kg CO2e / 1 Piece
  • Dimension: PG29-PG16
  • Dimension D: 39 mm
  • Dimension L1: 8 mm
  • Dimension L2: 3,5 mm
  • explosion-proof: no
  • Material: Brass
  • Nickel-plated: yes
  • Surface: Nickel-plated
  • Thread dimension, PG, external: 29
  • Thread dimension, PG, internal: 16
  • Thread length: 8 mm
  • Thread type: External thread: PG
  • Thread type: Internal thread: PG

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,175 kg CO2e / 1 Piece
DimensionPG29-PG16
Dimension D39 mm
Dimension L18 mm
Dimension L23,5 mm
explosion-proofno
MaterialBrass
Nickel-platedyes
SurfaceNickel-plated
Thread dimension, PG, external29
Thread dimension, PG, internal16
Thread length8 mm
Thread type: External threadPG
Thread type: Internal threadPG

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
