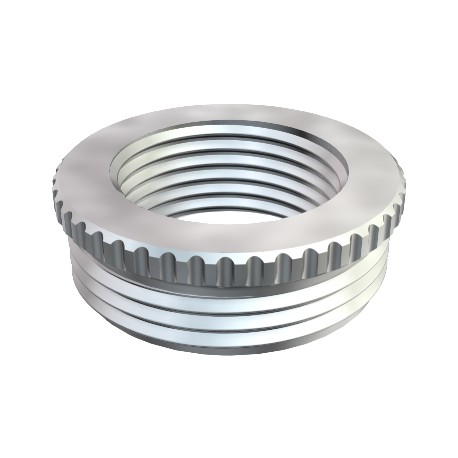

OBO BETTERMANN 167 R MS PG16-9 167 R MS PG16-9 2089157 OBO BETTERMANN Reduction , PG16-PG9, Nickel-plated, Brass, CuZn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

167 R MS PG16-9 2089157 OBO BETTERMANN Reduction , PG16-PG9, Nickel-plated, Brass, CuZn

167 R MS PG16-9

2089157

OBO BETTERMANN

50 Pcs.

Reduction , PG16-PG9, Nickel-plated, Brass, CuZn Reduction, PG thread. Reduction (Part H) to DIN 46320, with Pg thread to DIN 40430, as a transition from a PG thread hole to a smaller cable gland.* Prices according to DEL notation.

Cables > Enlargement/reducing ring
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Obo Bettermann 167 R MS PG16-9 reduction fitting offers a robust brass transition adapter designed to scale down PG threaded ports on industrial enclosures. Metallic reducers ensure high mechanical stability and secure cable routing in heavy-duty applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0442 kg CO2e / 1 Piece
  • Dimension: PG16-PG9
  • Dimension D: 24 mm
  • Dimension L1: 6,5 mm
  • Dimension L2: 3 mm
  • explosion-proof: no
  • Material: Brass
  • Nickel-plated: yes
  • Surface: Nickel-plated
  • Thread dimension, PG, external: 16
  • Thread dimension, PG, internal: 9
  • Thread length: 6,5 mm
  • Thread type: External thread: PG
  • Thread type: Internal thread: PG

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0442 kg CO2e / 1 Piece
DimensionPG16-PG9
Dimension D24 mm
Dimension L16,5 mm
Dimension L23 mm
explosion-proofno
MaterialBrass
Nickel-platedyes
SurfaceNickel-plated
Thread dimension, PG, external16
Thread dimension, PG, internal9
Thread length6,5 mm
Thread type: External threadPG
Thread type: Internal threadPG
