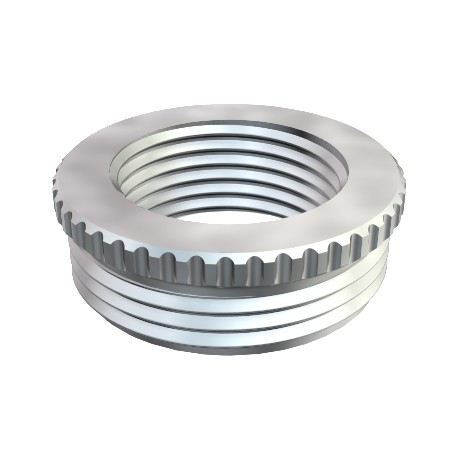

OBO BETTERMANN 167 R MS PG13-7 167 R MS PG13-7 2089092 OBO BETTERMANN Reduction , PG13,5-PG7, Nickel-plated, Brass, CuZn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

167 R MS PG13-7 2089092 OBO BETTERMANN Reduction , PG13,5-PG7, Nickel-plated, Brass, CuZn

167 R MS PG13-7

2089092

OBO BETTERMANN

50 Pcs.

Reduction , PG13,5-PG7, Nickel-plated, Brass, CuZn Reduction, PG thread. Reduction (Part H) to DIN 46320, with Pg thread to DIN 40430, as a transition from a PG thread hole to a smaller cable gland.* Prices according to DEL notation.

Cables > Enlargement/reducing ring
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Constructed from durable nickel-plated brass, this Obo Bettermann 167 R MS PG13-7 reduction fitting scales down PG thread openings on metallic enclosures. Metal adapters of this type are widely used in demanding industrial applications requiring robust mechanical strength and grounding continuity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,051 kg CO2e / 1 Piece
  • Dimension: PG13,5-PG7
  • Dimension D: 22 mm
  • Dimension L1: 6,5 mm
  • Dimension L2: 2,5 mm
  • explosion-proof: no
  • Material: Brass
  • Nickel-plated: yes
  • Surface: Nickel-plated
  • Thread dimension, PG, external: 13,5
  • Thread dimension, PG, internal: 7
  • Thread length: 6,5 mm
  • Thread type: External thread: PG
  • Thread type: Internal thread: PG

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,051 kg CO2e / 1 Piece
DimensionPG13,5-PG7
Dimension D22 mm
Dimension L16,5 mm
Dimension L22,5 mm
explosion-proofno
MaterialBrass
Nickel-platedyes
SurfaceNickel-plated
Thread dimension, PG, external13,5
Thread dimension, PG, internal7
Thread length6,5 mm
Thread type: External threadPG
Thread type: Internal threadPG
