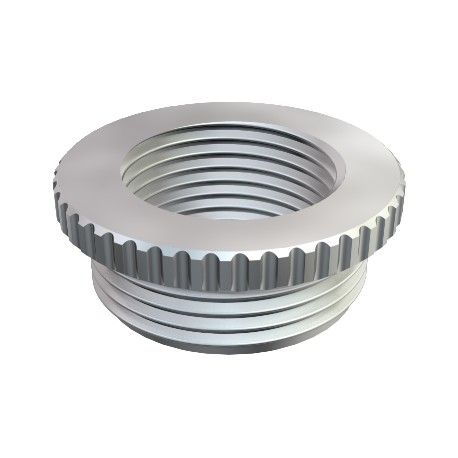

OBO BETTERMANN 167 R MS M50-40 167 R MS M50-40 2089610 OBO BETTERMANN Reduction , M50-M40, Nickel-plated, Brass, CuZn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

167 R MS M50-40 2089610 OBO BETTERMANN Reduction , M50-M40, Nickel-plated, Brass, CuZn

167 R MS M50-40

2089610

OBO BETTERMANN

25 Pcs.

Reduction , M50-M40, Nickel-plated, Brass, CuZn Reduction, metric thread. Reduction (Part H) in accordance with DIN 46320, with metric thread to DIN EN 60423 or ISO 68.* Prices according to DEL notation.

Cables > Enlargement/reducing ring
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Metric reductions are standard hardware items utilized in industrial automation to scale down enclosure ports for precise cable entry sizing. This Obo Bettermann brass component ensures reliable mechanical performance across heavy-duty applications.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,2539 kg CO2e / 1 Piece
  • Dimension: M50-M40
  • Dimension D: 57 mm
  • Dimension L1: 10 mm
  • Dimension L2: 4 mm
  • explosion-proof: no
  • Material: Brass
  • Nickel-plated: yes
  • Surface: Nickel-plated
  • Thread dimension, metric, external: 50
  • Thread dimension, metric, internal: 40
  • Thread length: 10 mm
  • Thread type: External thread: Metric
  • Thread type: Internal thread: Metric

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,2539 kg CO2e / 1 Piece
DimensionM50-M40
Dimension D57 mm
Dimension L110 mm
Dimension L24 mm
explosion-proofno
MaterialBrass
Nickel-platedyes
SurfaceNickel-plated
Thread dimension, metric, external50
Thread dimension, metric, internal40
Thread length10 mm
Thread type: External threadMetric
Thread type: Internal threadMetric
