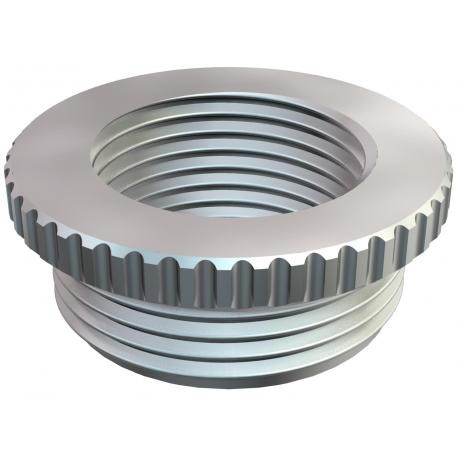

OBO BETTERMANN 167 R MS M40-32 167 R MS M40-32 2089599 OBO BETTERMANN Reduction , M40-M32, Nickel-plated, Brass, CuZn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

167 R MS M40-32 2089599 OBO BETTERMANN Reduction , M40-M32, Nickel-plated, Brass, CuZn

167 R MS M40-32

2089599

OBO BETTERMANN

25 Pcs.

Reduction , M40-M32, Nickel-plated, Brass, CuZn Reduction, metric thread. Reduction (Part H) in accordance with DIN 46320, with metric thread to DIN EN 60423 or ISO 68.* Prices according to DEL notation.

Cables > Enlargement/reducing ring
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Brass metric reduction fittings bridge the gap between oversized enclosure holes and standard cable glands, ensuring secure mechanical fastening. They are a staple in heavy industrial electrical installations where durability is paramount. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1004 kg CO2e / 1 Piece
  • Dimension: M40-M32
  • Dimension D: 50 mm
  • Dimension L1: 9 mm
  • Dimension L2: 3,5 mm
  • explosion-proof: no
  • Material: Brass
  • Nickel-plated: yes
  • Surface: Nickel-plated
  • Thread dimension, metric, external: 40
  • Thread dimension, metric, internal: 32
  • Thread length: 9 mm
  • Thread type: External thread: Metric
  • Thread type: Internal thread: Metric

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,1004 kg CO2e / 1 Piece
DimensionM40-M32
Dimension D50 mm
Dimension L19 mm
Dimension L23,5 mm
explosion-proofno
MaterialBrass
Nickel-platedyes
SurfaceNickel-plated
Thread dimension, metric, external40
Thread dimension, metric, internal32
Thread length9 mm
Thread type: External threadMetric
Thread type: Internal threadMetric

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
