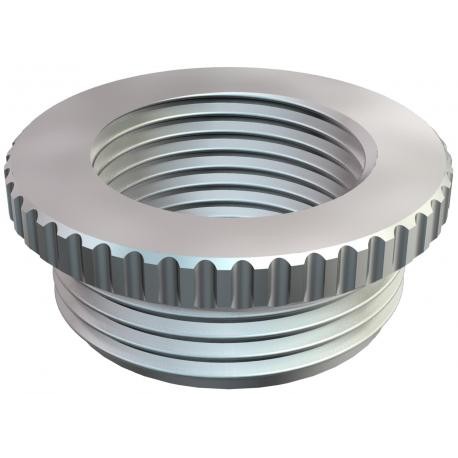

OBO BETTERMANN 167 R MS M25-20 167 R MS M25-20 2089556 OBO BETTERMANN Reduction , M25-M20, Nickel-plated, Brass, CuZn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

167 R MS M25-20 2089556 OBO BETTERMANN Reduction , M25-M20, Nickel-plated, Brass, CuZn

167 R MS M25-20

2089556

OBO BETTERMANN

50 Pcs.

Reduction , M25-M20, Nickel-plated, Brass, CuZn Reduction, metric thread. Reduction (Part H) in accordance with DIN 46320, with metric thread to DIN EN 60423 or ISO 68.* Prices according to DEL notation.

Cables > Enlargement/reducing ring
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Metric thread reductions are heavily utilized in machinery construction to seamlessly transition conduit entries from larger metric sizes down to smaller device connectors. The Obo Bettermann 167 R MS M25-20 provides a sturdy metal interface for professional panel building.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0529 kg CO2e / 1 Piece
  • Dimension: M25-M20
  • Dimension D: 30 mm
  • Dimension L1: 7 mm
  • Dimension L2: 3 mm
  • explosion-proof: no
  • Material: Brass
  • Nickel-plated: yes
  • Surface: Nickel-plated
  • Thread dimension, metric, external: 25
  • Thread dimension, metric, internal: 20
  • Thread length: 7 mm
  • Thread type: External thread: Metric
  • Thread type: Internal thread: Metric

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0529 kg CO2e / 1 Piece
DimensionM25-M20
Dimension D30 mm
Dimension L17 mm
Dimension L23 mm
explosion-proofno
MaterialBrass
Nickel-platedyes
SurfaceNickel-plated
Thread dimension, metric, external25
Thread dimension, metric, internal20
Thread length7 mm
Thread type: External threadMetric
Thread type: Internal threadMetric
