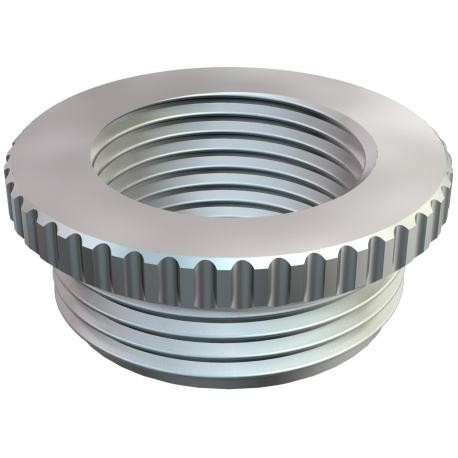

OBO BETTERMANN 167 R MS M16-12 167 R MS M16-12 2089505 OBO BETTERMANN Reduction , M16-M12, Nickel-plated, Brass, CuZn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

167 R MS M16-12 2089505 OBO BETTERMANN Reduction , M16-M12, Nickel-plated, Brass, CuZn

167 R MS M16-12

2089505

OBO BETTERMANN

50 Pcs.

Reduction , M16-M12, Nickel-plated, Brass, CuZn Reduction, metric thread. Reduction (Part H) in accordance with DIN 46320, with metric thread to DIN EN 60423 or ISO 68.* Prices according to DEL notation.

Cables > Enlargement/reducing ring
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Metallic reduction fittings are widely used in industrial automation to reconcile mismatched thread sizes between control enclosures and field cabling accessories. Part 167 R MS M16-12 by Obo Bettermann ensures a solid metal connection path.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0226 kg CO2e / 1 Piece
  • Dimension: M16-M12
  • Dimension D: 20 mm
  • Dimension L1: 6 mm
  • Dimension L2: 2,5 mm
  • explosion-proof: no
  • Material: Brass
  • Nickel-plated: yes
  • Surface: Nickel-plated
  • Thread dimension, metric, external: 16
  • Thread dimension, metric, internal: 12
  • Thread length: 6 mm
  • Thread type: External thread: Metric
  • Thread type: Internal thread: Metric

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0226 kg CO2e / 1 Piece
DimensionM16-M12
Dimension D20 mm
Dimension L16 mm
Dimension L22,5 mm
explosion-proofno
MaterialBrass
Nickel-platedyes
SurfaceNickel-plated
Thread dimension, metric, external16
Thread dimension, metric, internal12
Thread length6 mm
Thread type: External threadMetric
Thread type: Internal threadMetric
