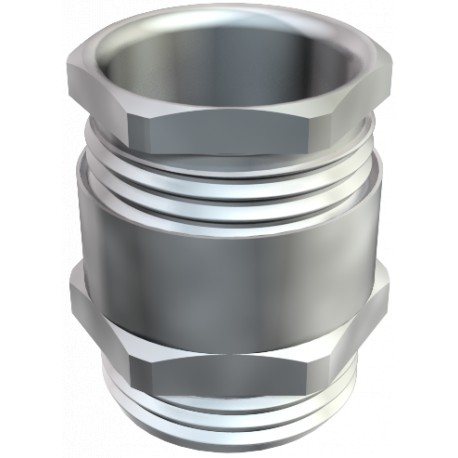

162 MS PG36 2082616 OBO BETTERMANN Cable gland with cutting ring, PG36, Nickel-plated, Brass, CuZn
162 MS PG36
2082616
OBO BETTERMANN
10 Pcs.
Cable gland with cutting ring, PG36, Nickel-plated, Brass, CuZn
Cone cable gland, PG thread, cutting ring, nickel-plated. Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with Pg connection thread to DIN 40430.Pressure rings made of electrogalvanised and transparently passivated steel.NR/SBR sealing ring.Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.With cutting ring.* Prices according to DEL notation.
Cables > Cable gland
metal Gls
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,589 kg CO2e / 1 Piece |
| Dimension | PG36 |
| Dimension E | 54 mm |
| Dimension L | 29 mm |
| Dimension L max. | 29 mm |
| Dimension L1 | 9 mm |
| Dimension L2 | 19,5 mm |
| Dimension L3 | 4,5 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | no |
| For Ex zone | Without |
| Halogen-free | no |
| Impact-resistant | no |
| Material | Brass |
|---|---|
| Protection rating | IP54 |
| Sealing area D, max. | 37 mm |
| Sealing area D, min. | 24 mm |
| Sealing insert, multiple | no |
| Strain relief option | no |
| Surface | Nickel-plated |
| Thread | Pg 36 |
| Thread length | 9 mm |
| Thread type | PG |
| Type of seal | Cuttable sealing ring |
| WAF 1 | 50 mm |
| WAF 2 | 47 mm |
| With locknut | no |
