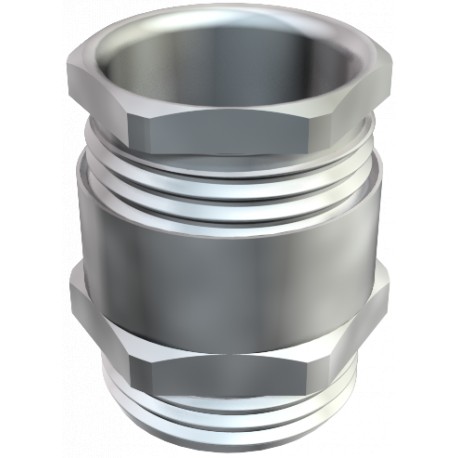

OBO BETTERMANN 162 MS PG21 162 MS PG21 2082578 OBO BETTERMANN Cable gland with cutting ring, PG21, Nickel-plated, Brass, CuZn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

162 MS PG21 2082578 OBO BETTERMANN Cable gland with cutting ring, PG21, Nickel-plated, Brass, CuZn

162 MS PG21

2082578

OBO BETTERMANN

25 Pcs.

Cable gland with cutting ring, PG21, Nickel-plated, Brass, CuZn Cone cable gland, PG thread, cutting ring, nickel-plated. Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with Pg connection thread to DIN 40430.Pressure rings made of electrogalvanised and transparently passivated steel.NR/SBR sealing ring.Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.With cutting ring.* Prices according to DEL notation.

Cables > Cable gland
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cable gland with cutting ring from Obo Bettermann delivers robust mechanical retention and environmental sealing for armored or heavy-duty cables entering industrial housings. Such fittings are widely utilized in machinery and switchgear construction to protect electrical interfaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1264 kg CO2e / 1 Piece
  • Dimension: PG21
  • Dimension E: 33,5 mm
  • Dimension L: 22 mm
  • Dimension L max.: 22 mm
  • Dimension L1: 7 mm
  • Dimension L2: 15 mm
  • Dimension L3: 3,5 mm
  • explosion-proof: no
  • Fibre-glass reinforced: no
  • Flat cable gland: no
  • For Ex zone: Without
  • Halogen-free: no
  • Impact-resistant: no
  • Material: Brass

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,1264 kg CO2e / 1 Piece
DimensionPG21
Dimension E33,5 mm
Dimension L22 mm
Dimension L max.22 mm
Dimension L17 mm
Dimension L215 mm
Dimension L33,5 mm
explosion-proofno
Fibre-glass reinforcedno
Flat cable glandno
For Ex zoneWithout
Halogen-freeno
Impact-resistantno
MaterialBrass
Protection ratingIP65
Sealing area D, max.20,5 mm
Sealing area D, min.10 mm
Sealing insert, multipleno
Strain relief optionno
SurfaceNickel-plated
ThreadPg 21
Thread typePG
Type of sealCuttable sealing ring
WAF 130 mm
WAF 228 mm
With locknutno
