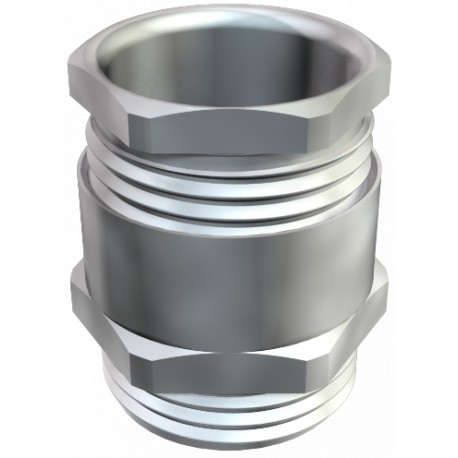

162 MS M50 2083732 OBO BETTERMANN Cable gland with cutting ring, M50, Nickel-plated, Brass, CuZn
162 MS M50
2083732
OBO BETTERMANN
5 Pcs.
Cables > Cable gland
metal Gls
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Obo Bettermann 162 MS M50 Cable gland with cutting ring provides exceptional mechanical retention and sealing performance for large power cables terminating at heavy machinery housings. The nickel-plated brass construction ensures high corrosion resistance in harsh industrial facilities.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend protection: no
- CO2 Footprint (GWP) Cradle-to-Gate: 0,6471 kg CO2e / 1 Piece
- Dimension: M50
- Dimension E: 61 mm
- Dimension L: 33 mm
- Dimension L max.: 33 mm
- Dimension L1: 9,5 mm
- Dimension L2: 33 mm
- Dimension L3: 4 mm
- explosion-proof: no
- Fibre-glass reinforced: no
- Flat cable gland: no
- For Ex zone: Without
- Halogen-free: no
- Impact-resistant: no
- Material: Brass
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6471 kg CO2e / 1 Piece |
| Dimension | M50 |
| Dimension E | 61 mm |
| Dimension L | 33 mm |
| Dimension L max. | 33 mm |
| Dimension L1 | 9,5 mm |
| Dimension L2 | 33 mm |
| Dimension L3 | 4 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | no |
| For Ex zone | Without |
| Halogen-free | no |
| Impact-resistant | no |
| Material | Brass |
|---|---|
| Protection rating | IP65 |
| Sealing area D, max. | 42 mm |
| Sealing area D, min. | 30 mm |
| Sealing insert, multiple | no |
| Strain relief option | no |
| Surface | Nickel-plated |
| Thread | M50 x 1,5 |
| Thread length | 9,5 mm |
| Thread type | Metric |
| Type of seal | Cuttable sealing ring |
| WAF 1 | 57 mm |
| WAF 2 | 54 mm |
| With locknut | no |
