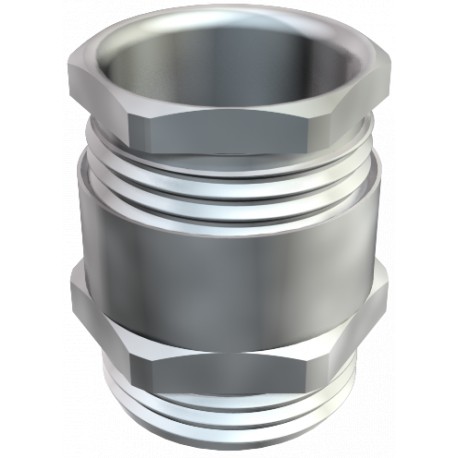

OBO BETTERMANN 162 MS M32 162 MS M32 2083724 OBO BETTERMANN Cable gland with cutting ring, M32, Nickel-plated, Brass, CuZn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

162 MS M32 2083724 OBO BETTERMANN Cable gland with cutting ring, M32, Nickel-plated, Brass, CuZn

162 MS M32

2083724

OBO BETTERMANN

10 Pcs.

Cable gland with cutting ring, M32, Nickel-plated, Brass, CuZn Cone cable gland, metric thread, cutting ring, nickel-plated. Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with metric connection thread to DIN EN 60423 and ISO 68. Pressure rings made of electrogalvanised and transparently passivated steel. NR/SBR sealing ring.Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.With cutting ring.* Prices according to DEL notation.

Cables > Cable gland
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Constructed from durable brass, the Obo Bettermann 162 MS M32 cable gland with cutting ring provides robust mechanical retention for heavy-duty cabling applications. Industrial environments use metallic entry solutions of this type to ground armored lines and withstand harsh physical conditions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1389 kg CO2e / 1 Piece
  • Dimension: M32
  • Dimension E: 43,5 mm
  • Dimension L: 24 mm
  • Dimension L max.: 24 mm
  • Dimension L1: 8,5 mm
  • Dimension L2: 24 mm
  • Dimension L3: 3,5 mm
  • explosion-proof: no
  • Fibre-glass reinforced: no
  • Flat cable gland: no
  • For Ex zone: Without
  • Halogen-free: no
  • Impact-resistant: no
  • Material: Brass

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,1389 kg CO2e / 1 Piece
DimensionM32
Dimension E43,5 mm
Dimension L24 mm
Dimension L max.24 mm
Dimension L18,5 mm
Dimension L224 mm
Dimension L33,5 mm
explosion-proofno
Fibre-glass reinforcedno
Flat cable glandno
For Ex zoneWithout
Halogen-freeno
Impact-resistantno
MaterialBrass
Protection ratingIP65
Sealing area D, max.29 mm
Sealing area D, min.18 mm
Sealing insert, multipleno
Strain relief optionno
SurfaceNickel-plated
ThreadM32 x 1,5
Thread length8,5 mm
Thread typeMetric
Type of sealCuttable sealing ring
WAF 140 mm
WAF 237 mm
With locknutno
