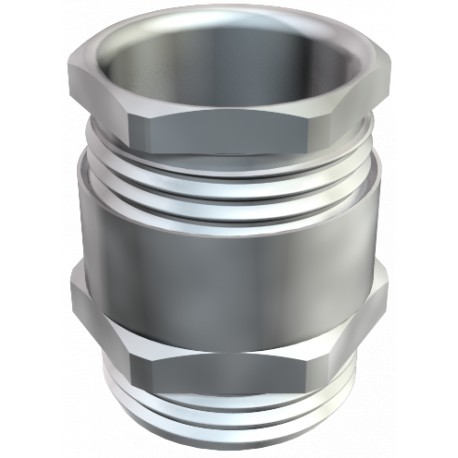

OBO BETTERMANN 162 MS M25 162 MS M25 2083720 OBO BETTERMANN Cable gland with cutting ring, M25, Nickel-plated, Brass, CuZn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

162 MS M25 2083720 OBO BETTERMANN Cable gland with cutting ring, M25, Nickel-plated, Brass, CuZn

162 MS M25

2083720

OBO BETTERMANN

25 Pcs.

Cable gland with cutting ring, M25, Nickel-plated, Brass, CuZn Cone cable gland, metric thread, cutting ring, nickel-plated. Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with metric connection thread to DIN EN 60423 and ISO 68. Pressure rings made of electrogalvanised and transparently passivated steel. NR/SBR sealing ring.Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.With cutting ring.* Prices according to DEL notation.

Cables > Cable gland
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Obo Bettermann 162 MS M25 cable gland with cutting ring provides reliable mechanical anchoring and sealing for cables routed into machinery, control units, and electrical distribution enclosures. Its integrated cutting ring design secures the cable tightly against vibration and mechanical stress. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1137 kg CO2e / 1 Piece
  • Dimension: M25
  • Dimension E: 35,5 mm
  • Dimension L: 22 mm
  • Dimension L max.: 22 mm
  • Dimension L1: 8 mm
  • Dimension L2: 22 mm
  • Dimension L3: 2,5 mm
  • explosion-proof: no
  • Fibre-glass reinforced: no
  • Flat cable gland: no
  • For Ex zone: Without
  • Halogen-free: no
  • Impact-resistant: no
  • Material: Brass

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,1137 kg CO2e / 1 Piece
DimensionM25
Dimension E35,5 mm
Dimension L22 mm
Dimension L max.22 mm
Dimension L18 mm
Dimension L222 mm
Dimension L32,5 mm
explosion-proofno
Fibre-glass reinforcedno
Flat cable glandno
For Ex zoneWithout
Halogen-freeno
Impact-resistantno
MaterialBrass
Protection ratingIP65
Sealing area D, max.20,5 mm
Sealing area D, min.10 mm
Sealing insert, multipleno
Strain relief optionno
SurfaceNickel-plated
ThreadM25 x 1,5
Thread length8 mm
Thread typeMetric
Type of sealCuttable sealing ring
WAF 132 mm
WAF 228 mm
With locknutno
