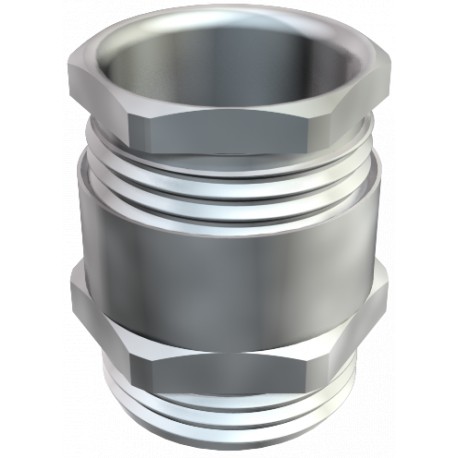

OBO BETTERMANN 162 MS M20 162 MS M20 2083716 OBO BETTERMANN Cable gland with cutting ring, M20, Nickel-plated, Brass, CuZn View larger
Images are for illustrative purposes only. Please refer to data sheet for details

162 MS M20 2083716 OBO BETTERMANN Cable gland with cutting ring, M20, Nickel-plated, Brass, CuZn

162 MS M20

2083716

OBO BETTERMANN

25 Pcs.

Cable gland with cutting ring, M20, Nickel-plated, Brass, CuZn Cone cable gland, metric thread, cutting ring, nickel-plated. Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with metric connection thread to DIN EN 60423 and ISO 68. Pressure rings made of electrogalvanised and transparently passivated steel. NR/SBR sealing ring.Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.With cutting ring.* Prices according to DEL notation.

Cables > Cable gland
metal Gls

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Obo Bettermann 162 MS M20 cable gland with cutting ring is a metallic entry component designed to establish secure mechanical retention and electrical continuity for shielded or standard cables entering industrial enclosures. The internal cutting ring grips the cable securely to resist pull forces in demanding operational environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0572 kg CO2e / 1 Piece
  • Dimension: M20
  • Dimension E: 24,4 mm
  • Dimension L: 18 mm
  • Dimension L max.: 18 mm
  • Dimension L1: 7 mm
  • Dimension L2: 18 mm
  • Dimension L3: 3 mm
  • explosion-proof: no
  • Fibre-glass reinforced: no
  • Flat cable gland: no
  • For Ex zone: Without
  • Halogen-free: no
  • Impact-resistant: no
  • Material: Brass

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,0572 kg CO2e / 1 Piece
DimensionM20
Dimension E24,4 mm
Dimension L18 mm
Dimension L max.18 mm
Dimension L17 mm
Dimension L218 mm
Dimension L33 mm
explosion-proofno
Fibre-glass reinforcedno
Flat cable glandno
For Ex zoneWithout
Halogen-freeno
Impact-resistantno
MaterialBrass
Protection ratingIP65
Sealing area D, max.13,5 mm
Sealing area D, min.7,5 mm
Sealing insert, multipleno
Strain relief optionno
SurfaceNickel-plated
ThreadM20 x 1,5
Thread length7 mm
Thread typeMetric
Type of sealCuttable sealing ring
WAF 122 mm
WAF 220 mm
With locknutno
