View larger
Images are for illustrative purposes only. Please refer to data sheet for details

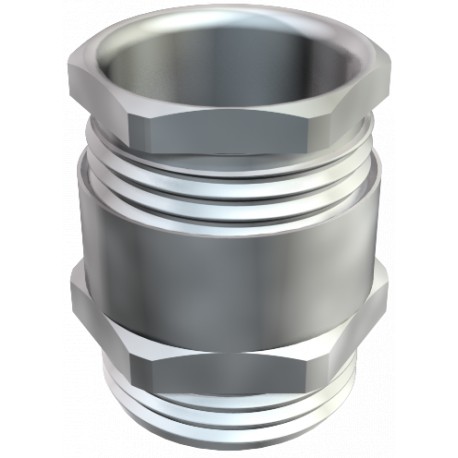

162 MS M16 2083712 OBO BETTERMANN Cable gland with cutting ring, M16, Nickel-plated, Brass, CuZn
162 MS M16
2083712
OBO BETTERMANN
50 Pcs.
Cable gland with cutting ring, M16, Nickel-plated, Brass, CuZn
Cone cable gland, metric thread, cutting ring, nickel-plated. Cable gland with hexagonal intermediate connector, shape C4, to DIN 46320 with metric connection thread to DIN EN 60423 and ISO 68. Pressure rings made of electrogalvanised and transparently passivated steel. NR/SBR sealing ring.Protection rating: with connection thread sealing ring IP 65, without connection thread sealing ring IP 54.With cutting ring.* Prices according to DEL notation.
Cables > Cable gland
metal Gls
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0509 kg CO2e / 1 Piece |
| Dimension | M16 |
| Dimension E | 20,2 mm |
| Dimension L | 16 mm |
| Dimension L max. | 16 mm |
| Dimension L1 | 7 mm |
| Dimension L2 | 16 mm |
| Dimension L3 | 3 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | no |
| For Ex zone | Without |
| Halogen-free | no |
| Impact-resistant | no |
| Material | Brass |
|---|---|
| Protection rating | IP65 |
| Sealing area D, max. | 8 mm |
| Sealing area D, min. | 5 mm |
| Sealing insert, multiple | no |
| Strain relief option | no |
| Surface | Nickel-plated |
| Thread | M16 x 1,5 |
| Thread length | 7 mm |
| Thread type | Metric |
| Type of seal | Cuttable sealing ring |
| WAF 1 | 18 mm |
| WAF 2 | 15 mm |
| With locknut | no |
