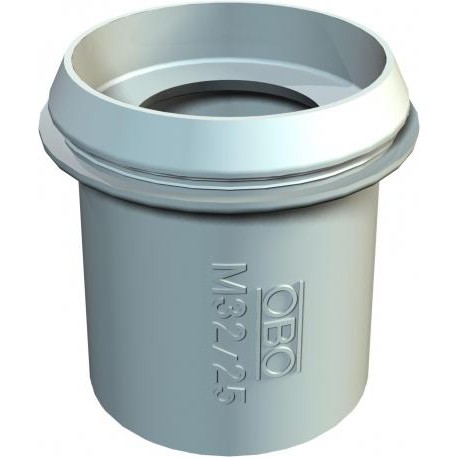

OBO BETTERMANN EDR 32 25-32 LGR EDR 32 25-32 LGR 2011530 OBO BETTERMANN Plug-in seal for pipes, Ø32/25-32, Light grey, 7035, Polyvinylchlori.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EDR 32 25-32 LGR 2011530 OBO BETTERMANN Plug-in seal for pipes, Ø32/25-32, Light grey, 7035, Polyvinylchlori..

EDR 32 25-32 LGR

2011530

OBO BETTERMANN

50 Pcs.

Plug-in seal for pipes, Ø32/25-32, Light grey, 7035, Polyvinylchloride, PVC Plug-in seal for pipes, light grey. Plug-in seal for junction boxes for direct insertion of metric pipes

Cables > Cable plug sealing clamp
junction boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann plug-in seal for pipes model EDR 32 25-32 LGR creates dependable cable and conduit passages through enclosure walls. Such components simplify installation while protecting internal electrical assemblies from moisture and dust.

Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0296 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Dimension: Ø32/25-32
  • Dimension A: 2,2 mm
  • Dimension D1: 37 mm
  • Dimension D2: 32,3 mm
  • Dimension D3: 24 mm
  • Dimension D4: 31,2 mm
  • Dimension L: 36 mm
  • for diameter, max.: 32 mm
  • for diameter, min.: 25 mm
  • for wall thickness, max.: 2,2
  • for wall thickness, min.: 2,2
  • Halogen-free: yes
  • Material: Thermoplastic elastomer
  • Nominal diameter: 32 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0296 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionØ32/25-32
Dimension A2,2 mm
Dimension D137 mm
Dimension D232,3 mm
Dimension D324 mm
Dimension D431,2 mm
Dimension L36 mm
for diameter, max.32 mm
for diameter, min.25 mm
for wall thickness, max.2,2
for wall thickness, min.2,2
Halogen-freeyes
MaterialThermoplastic elastomer
Nominal diameter32 mm
Protection ratingIP55
SizeM32
Version forOpen
