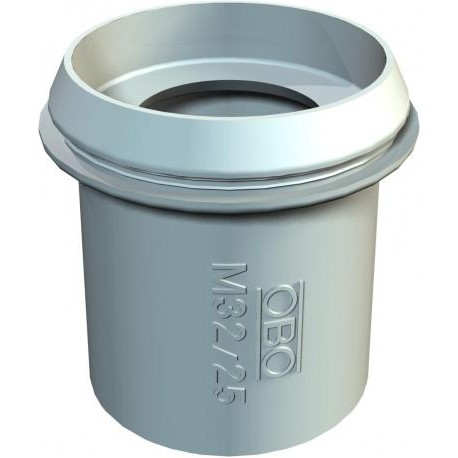

OBO BETTERMANN EDR 25 20-25 LGR EDR 25 20-25 LGR 2011514 OBO BETTERMANN Plug-in seal for pipes, Ø25/20-25, Light grey, 7035, Polyvinylchlori.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

EDR 25 20-25 LGR 2011514 OBO BETTERMANN Plug-in seal for pipes, Ø25/20-25, Light grey, 7035, Polyvinylchlori..

EDR 25 20-25 LGR

2011514

OBO BETTERMANN

50 Pcs.

Plug-in seal for pipes, Ø25/20-25, Light grey, 7035, Polyvinylchloride, PVC Plug-in seal for pipes, light grey. Plug-in seal for junction boxes for direct insertion of metric pipes

Cables > Cable plug sealing clamp
junction boxes

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann EDR 25 20-25 LGR plug-in seal for pipes provides a reliable sealing solution for conduits passing through walls or junction boxes, protecting internal infrastructure from external contaminants.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0155 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Dimension: Ø25/20-25
  • Dimension A: 2,2 mm
  • Dimension D1: 29,5 mm
  • Dimension D2: 25,3 mm
  • Dimension D3: 18,5 mm
  • Dimension D4: 24,2 mm
  • Dimension L: 30 mm
  • for diameter, max.: 25 mm
  • for diameter, min.: 20 mm
  • for wall thickness, max.: 2,2
  • for wall thickness, min.: 2,2
  • Halogen-free: yes
  • Material: Thermoplastic elastomer
  • Nominal diameter: 25 mm

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0155 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionØ25/20-25
Dimension A2,2 mm
Dimension D129,5 mm
Dimension D225,3 mm
Dimension D318,5 mm
Dimension D424,2 mm
Dimension L30 mm
for diameter, max.25 mm
for diameter, min.20 mm
for wall thickness, max.2,2
for wall thickness, min.2,2
Halogen-freeyes
MaterialThermoplastic elastomer
Nominal diameter25 mm
Protection ratingIP55
SizeM25
Version forOpen
