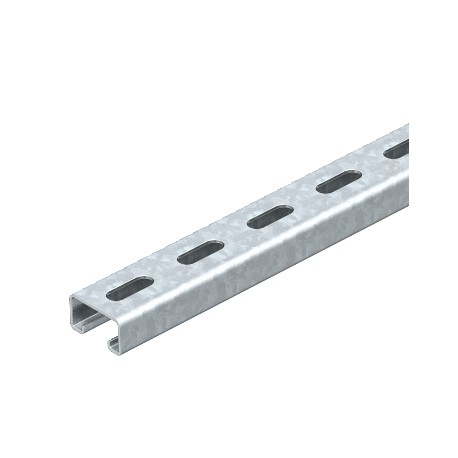

OBO BETTERMANN MS4121P2000A4 MS 21 L 2M V4A 1122476 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 2000x41x21, Stainless stee.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MS 21 L 2M V4A 1122476 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 2000x41x21, Stainless stee..

MS4121P2000A4

1122476

OBO BETTERMANN

2 m.

Profile rails perforated, slot width 22 mm, 2000x41x21, Stainless steel, grade 316 Ti, VA, 1.4571 MS4121 mounting rail, slot 22 mm, A4, perforated. Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Automation > Mounting rail/-profile
Installation Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Profile rails perforated, identified by part number MS4121P2000A4 from Obo Bettermann, provide versatile mounting channels for organizing cables, piping, and electrical components in industrial settings. These slotted metal channels allow secure fastening at any point along their length. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 7,3107 kg CO2e / 1 Meter
  • Dimension: 2000x41x21
  • Dimension L: 2000 mm
  • Drill hole spacing, centre: 50 mm
  • Height: 21 mm
  • Hole size: 14x28 mm
  • Length: 2000 mm
  • Maintain electrical functions: no
  • Material: Stainless steel 1.4571
  • Material thickness: 2 mm
  • Profile shape: C profile
  • Slot width: 22 mm
  • Static value A: 1,65 cm²
  • Static value ly: 0,95 cm⁴
  • Static value lz: 4,51 cm⁴

More info

▲
Breakableno
CO2 Footprint (GWP) Cradle-to-Gate7,3107 kg CO2e / 1 Meter
Dimension2000x41x21
Dimension L2000 mm
Drill hole spacing, centre50 mm
Height21 mm
Hole size14x28 mm
Length2000 mm
Maintain electrical functionsno
MaterialStainless steel 1.4571
Material thickness2 mm
Profile shapeC profile
Slot width22 mm
Static value A1,65 cm²
Static value ly0,95 cm⁴
Static value lz4,51 cm⁴
Static value Wy0,89 cm³
Static value Wz2,2 cm³
SurfaceBright, treated
Type of perforationPerforated back
Version forSingle profile
Width41 mm
With perforationyes
With toothingyes
