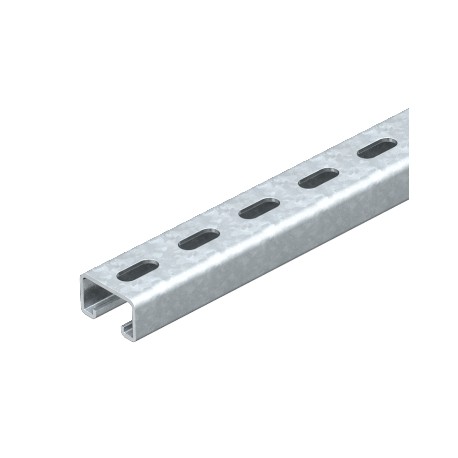

MS5030P6000FT 1121472 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 6000x50x30, Hot-dip galvani..

MS5030P6000FT

1121472

OBO BETTERMANN

6 m.

Profile rails perforated, slot width 22 mm, 6000x50x30, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Profile MS5030P6000FT, perfor., groove width 22mm 6000x50x30 Steel, St, Hot-dip galvanized, DIN EN ISO 1461

Automation > Mounting rail/-profile
Installation Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

MS5030P6000FT 1121472 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 6000x50x30, Hot-dip galvani serve as versatile metal framing channels used widely in electrical distribution and mechanical support systems for mounting cables, pipes, and control devices. These slotted C-profile rails allow flexible attachment points throughout complex industrial installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Length (EF001438): 6000 mm
  • Width (EF000008): 50 mm
  • Height (EF000040): 30 mm
  • Material thickness (EF000386): 3 mm
  • Profile shape (EF005179): C-profile
  • Type of perforation (EF004147): Slotted
  • With toothing (EF000571): No
  • Area moment of inertia Iy (EF012513): 3.99 cm4
  • Area of inertia Iz (EF012514): 13.11 cm4
  • Moment of resistance Wy (EF012503): 3.95 cm³
  • Moment of resistance Wz (EF012504): 6.38 cm³
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Surface protection (EF000139): Hot dip galvanized
  • Weight (EF000167): 2.83 kg

More info

▲
Static values:
A = 3,3854 cm2
ly = 3,9943 cm⁴
lz = 13,1098 cm⁴
Wy = 3,9512 cm3
Wz = 6,3751 cm3
