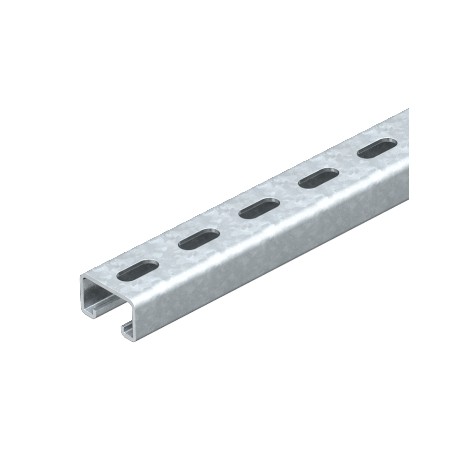

OBO BETTERMANN MS5030P2000A2 MS5030P2000A2 1121480 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 2000x50x30, Stainless steel.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MS5030P2000A2 1121480 OBO BETTERMANN Profile rails perforated, slot width 22 mm, 2000x50x30, Stainless steel..

MS5030P2000A2

1121480

OBO BETTERMANN

2 m.

Profile rails perforated, slot width 22 mm, 2000x50x30, Stainless steel, grade 304, VA, 1.4301 Profile MS5030P2000A2, perfor., slot width 22mm 2000x50x30 Stainless steel 1.4301, A2, 1.4301, Polished, with subsequent treatment

Automation > Mounting rail/-profile
Installation Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann perforated profile rail (part number MS5030P2000A2) is a heavy-duty C-channel designed for mounting industrial cable support systems, conduits, and equipment brackets.

Perforated metal framing channels provide flexible installation options across manufacturing plants, commercial buildings, and electrical control rooms.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Length (EF001438): 2000 mm
  • Width (EF000008): 50 mm
  • Height (EF000040): 30 mm
  • Material thickness (EF000386): 3 mm
  • Profile shape (EF005179): C-profile
  • Type of perforation (EF004147): Slotted
  • With toothing (EF000571): No
  • Area moment of inertia Iy (EF012513): 3.99 cm4
  • Area of inertia Iz (EF012514): 13.11 cm4
  • Moment of resistance Wy (EF012503): 3.95 cm³
  • Moment of resistance Wz (EF012504): 6.38 cm³
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Stainless steel
  • Material quality (EF001257): Rustproof and acidproof steel
  • Weight (EF000167): 2.8 kg

More info

▲
Static values:
A = 3,3854 cm2
ly = 3,9943 cm⁴
lz = 13,1098 cm⁴
Wy = 3,9512 cm3
Wz = 6,3751 cm3
