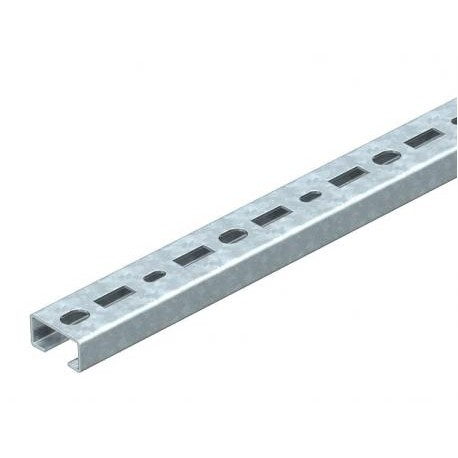

OBO BETTERMANN CM3015P2000FS CM3015P2000FS 1110002 OBO BETTERMANN Profile rails perforated, slot width 16 mm, 2000x30x15, Strip-galvanise.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CM3015P2000FS 1110002 OBO BETTERMANN Profile rails perforated, slot width 16 mm, 2000x30x15, Strip-galvanise..

CM3015P2000FS

1110002

OBO BETTERMANN

2 m.

Profile rails perforated, slot width 16 mm, 2000x30x15, Strip-galvanised, DIN EN 10147, Steel, St Profile CM3015P2000FS, perfor., slot width 16mm 2000x30x15 Steel, St, strip galvanized, DIN EN 10346 CM3015 profile, 16 mm groove, FS, perforated

Automation > Mounting rail/-profile
Installation Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Static values:
A = 0,9621 cm2
ly = 0,2878 cm⁴
lz = 1,2301 cm⁴
Wy = 0,3138 cm3
Wz = 0,8201 cm3
ETIM for 1110002 Fixings and fasteners (EC000386)
Feature Name Feature Value
Length (EF001438) 2000 mm
Width (EF000008) 30 mm
Height (EF000040) 15 mm
Material thickness (EF000386) 1.5 mm
Profile shape (EF005179) C-profile
Type of perforation (EF004147) Slotted
With toothing (EF000571) No
Area moment of inertia Iy (EF012513) 0.24 cm4
Area of inertia Iz (EF012514) 1.22 cm4
Moment of resistance Wy (EF012503) 0.29 cm³
Moment of resistance Wz (EF012504) 0.81 cm³
Suitable for circuit integrity (EF007806) No
Material (EF002169) Steel
Surface protection (EF000139) Pre-galvanised
Weight (EF000167) 0.69 kg
