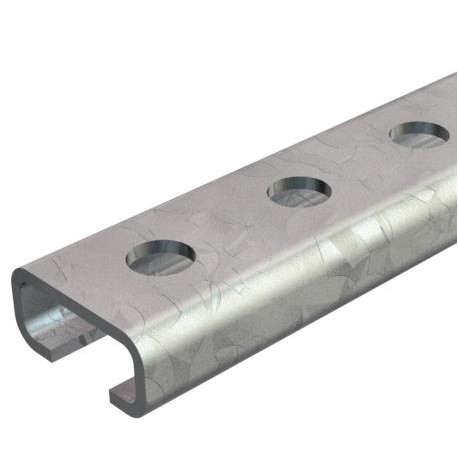

2062 L 2M FT 1109529 OBO BETTERMANN Profile rails perforated, slot width 12 mm, 2000x27x12,5, Hot-dip galvan..
CL2712P2000FT
1109529
OBO BETTERMANN
2 m.
Automation > Mounting rail/-profile
Installation Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann CL2712P2000FT is a profile rails perforated system designed to support cable routing pathways, panels, and light mechanical loads in automation panels and industrial buildings. Slotted channels deliver dependable structural versatility. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- Bundle: 20 m
- CO2 Footprint (GWP) Cradle-to-Gate: 1,9454 kg CO2e / 1 Meter
- Dimension: 2000x27x12,5
- Dimension L: 2000 mm
- Drill hole spacing, centre: 100 mm
- Height: 12,5 mm
- Length: 2000 mm
- Maintain electrical functions: no
- Material: Steel
- Material thickness: 2 mm
- Profile shape: C profile
- Slot width: 12 mm
- Static value A: 0,89 cm²
- Static value ly: 0,17 cm⁴
- Static value lz: 0,98 cm⁴
More info
▲| Breakable | no |
|---|---|
| Bundle | 20 m |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,9454 kg CO2e / 1 Meter |
| Dimension | 2000x27x12,5 |
| Dimension L | 2000 mm |
| Drill hole spacing, centre | 100 mm |
| Height | 12,5 mm |
| Length | 2000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Material thickness | 2 mm |
| Profile shape | C profile |
| Slot width | 12 mm |
|---|---|
| Static value A | 0,89 cm² |
| Static value ly | 0,17 cm⁴ |
| Static value lz | 0,98 cm⁴ |
| Static value Wy | 0,25 cm³ |
| Static value Wz | 0,72 cm³ |
| Surface | Hot-dip galvanised |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 27 mm |
| With perforation | yes |
| With toothing | no |
