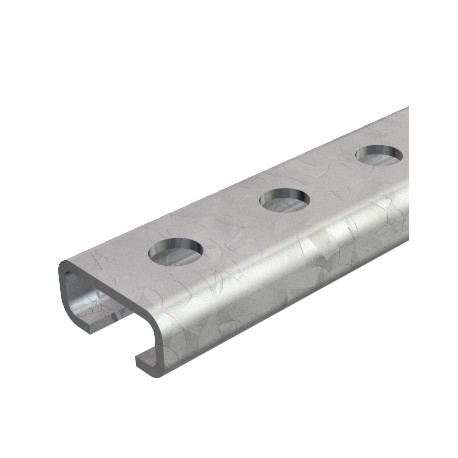

OBO BETTERMANN CL2712UP2000FT 2062 2M FT 1109022 OBO BETTERMANN Profile rails unperforated, slot width 12 mm, 2000x27x12,5, Hot-dip galvan.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

2062 2M FT 1109022 OBO BETTERMANN Profile rails unperforated, slot width 12 mm, 2000x27x12,5, Hot-dip galvan..

CL2712UP2000FT

1109022

OBO BETTERMANN

2 m.

Profile rails unperforated, slot width 12 mm, 2000x27x12,5, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Profile rail CL2712, slot 12 mm, FT, unperforated. Light-duty C profile rail for cable routing, in conjunction with series clips or clamp clips with N foot. Can also be used in building of control cabinets.

Automation > Mounting rail/-profile
Installation Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann CL2712UP2000FT is a profile rails unperforated unit utilized for mounting applications where a smooth, uninterrupted channel surface is required for fastener placement and clean aesthetic installations. Solid channels provide uniform structural integrity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • Bundle: 20 m
  • CO2 Footprint (GWP) Cradle-to-Gate: 1,8227 kg CO2e / 1 Meter
  • Dimension: 2000x27x12,5
  • Dimension L: 2000 mm
  • Height: 12,5 mm
  • Length: 2000 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Material thickness: 2 mm
  • Profile shape: C profile
  • Slot width: 12 mm
  • Static value A: 1,08 cm²
  • Static value lz: 0,98 cm⁴
  • Surface: Hot-dip galvanised
  • Type of perforation: Without

More info

▲
Breakableno
Bundle20 m
CO2 Footprint (GWP) Cradle-to-Gate1,8227 kg CO2e / 1 Meter
Dimension2000x27x12,5
Dimension L2000 mm
Height12,5 mm
Length2000 mm
Maintain electrical functionsno
MaterialSteel
Material thickness2 mm
Profile shapeC profile
Slot width12 mm
Static value A1,08 cm²
Static value lz0,98 cm⁴
SurfaceHot-dip galvanised
Type of perforationWithout
Version forSingle profile
Width27 mm
With perforationno
With toothingno
