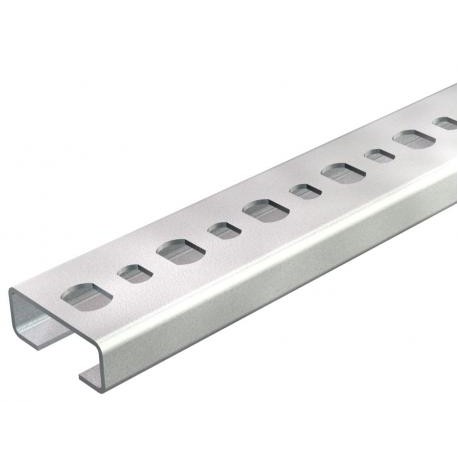

OBO BETTERMANN CL2510P2000FS CL2510P2000FS 1108123 OBO BETTERMANN Profile rails perforated, slot width 11 mm, 2000x25x10, Strip-galvanise.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CL2510P2000FS 1108123 OBO BETTERMANN Profile rails perforated, slot width 11 mm, 2000x25x10, Strip-galvanise..

CL2510P2000FS

1108123

OBO BETTERMANN

2 m.

Profile rails perforated, slot width 11 mm, 2000x25x10, Strip-galvanised, DIN EN 10147, Steel, St Profile CL2510P2000FS, perfor., slot width 11mm 2000x25x10 Steel, St, strip galvanized, DIN EN 10346 CL2510 profile, 11 mm groove, FS, perforated. C-profile for light wiring loads, in combination with multi-pipe clamps or profile clamps with N-type pins. It is also used in the assembly of control cabinets.

Automation > Mounting rail/-profile
Installation Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

CL2510P2000FS 1108123 OBO BETTERMANN Profile rails perforated, slot width 11 mm, 2000x25x10, Strip-galvanise function as lightweight mounting channels designed for light-duty electrical installations, cable management, and fixture fastening. These pre-galvanized C-profile rails provide a dependable slotted surface for precise component alignment. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Length (EF001438): 2000 mm
  • Width (EF000008): 25 mm
  • Height (EF000040): 10 mm
  • Material thickness (EF000386): 1 mm
  • Profile shape (EF005179): C-profile
  • Type of perforation (EF004147): Slotted
  • With toothing (EF000571): No
  • Area moment of inertia Iy (EF012513): 0.06 cm4
  • Area of inertia Iz (EF012514): 0.44 cm4
  • Moment of resistance Wy (EF012503): 0.12 cm³
  • Moment of resistance Wz (EF012504): 0.35 cm³
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Surface protection (EF000139): Pre-galvanised
  • Weight (EF000167): 0.37 kg

More info

▲
C-profile for light wiring loads, in combination with multi-pipe clamps or profile clamps with N-type pins. It is also used in the assembly of control cabinets.
