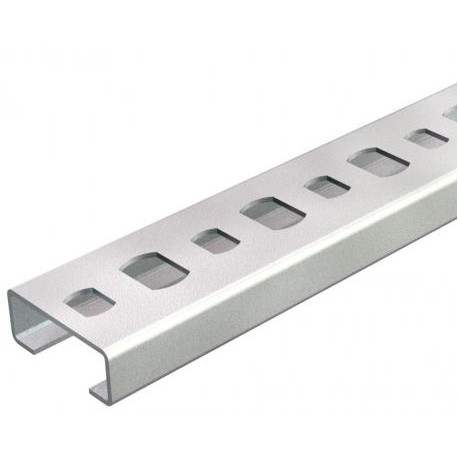

2060 L 2M FS 1106627 OBO BETTERMANN Profile rails perforated, slot width 11 mm, 2000x20x8, Strip-galvanised,..
CL2008P2000FS
1106627
OBO BETTERMANN
2 m.
Automation > Mounting rail/-profile
Installation Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured as a compact Obo Bettermann profile rails perforated unit, this strip-galvanised metal channel provides secure attachment pathways for lightweight cabling and instrumentation tubing. Technicians rely on these perforated tracks for rapid modular assembly. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Breakable: no
- Bundle: 50 m
- CO2 Footprint (GWP) Cradle-to-Gate: 0,5147 kg CO2e / 1 Meter
- Dimension: 2000x20x8
- Dimension L: 2000 mm
- Drill hole spacing, centre: 10 mm
- Height: 8 mm
- Length: 2000 mm
- Maintain electrical functions: no
- Material: Steel
- Material thickness: 0,75 mm
- Profile shape: C profile
- Slot width: 11 mm
- Static value A: 0,24 cm²
- Static value ly: 0,02 cm⁴
- Static value lz: 0,17 cm⁴
More info
▲| Breakable | no |
|---|---|
| Bundle | 50 m |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5147 kg CO2e / 1 Meter |
| Dimension | 2000x20x8 |
| Dimension L | 2000 mm |
| Drill hole spacing, centre | 10 mm |
| Height | 8 mm |
| Length | 2000 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Material thickness | 0,75 mm |
| Profile shape | C profile |
| Slot width | 11 mm |
|---|---|
| Static value A | 0,24 cm² |
| Static value ly | 0,02 cm⁴ |
| Static value lz | 0,17 cm⁴ |
| Static value Wy | 0,05 cm³ |
| Static value Wz | 0,17 cm³ |
| Surface | Strip galvanized |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 20 mm |
| With perforation | yes |
| With toothing | no |
