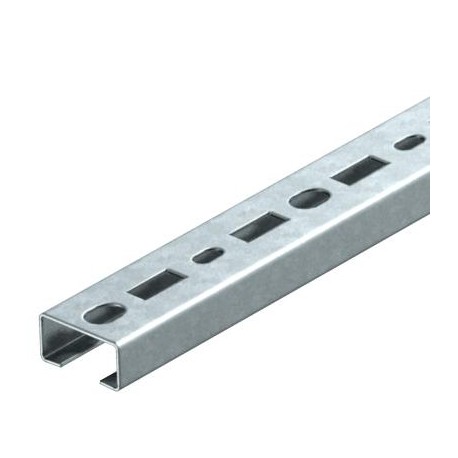

OBO BETTERMANN CMS3518P2000FS 1268 SL 2M FS 1104454 OBO BETTERMANN Profile rails perforated, slot width 17 mm, 2000x35x18, Strip-galvanise.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

1268 SL 2M FS 1104454 OBO BETTERMANN Profile rails perforated, slot width 17 mm, 2000x35x18, Strip-galvanise..

CMS3518P2000FS

1104454

OBO BETTERMANN

2 m.

Profile rails perforated, slot width 17 mm, 2000x35x18, Strip-galvanised, DIN EN 10147, Steel, St CMS3518 profile rail, slot 17 mm, FS, perforated. Central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.

Automation > Mounting rail/-profile
Installation Profile

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

CMS3518P2000FS profile rails perforated from Obo Bettermann offer a slotted utility track designed for effortless component fastening and wiring harness organization. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Breakable: no
  • Bundle: 20 m
  • CO2 Footprint (GWP) Cradle-to-Gate: 2,4093 kg CO2e / 1 Meter
  • Dimension: 2000x35x18
  • Dimension L: 2000 mm
  • Drill hole spacing, centre: 25 mm
  • Height: 18 mm
  • Length: 2000 mm
  • Maintain electrical functions: yes
  • Material: Steel
  • Material thickness: 1,75 mm
  • Profile shape: C profile
  • Rustproof steel, pickled: no
  • Slot width: 17 mm
  • Static value A: 1,17 cm²
  • Static value ly: 0,52 cm⁴

More info

▲
Breakableno
Bundle20 m
CO2 Footprint (GWP) Cradle-to-Gate2,4093 kg CO2e / 1 Meter
Dimension2000x35x18
Dimension L2000 mm
Drill hole spacing, centre25 mm
Height18 mm
Length2000 mm
Maintain electrical functionsyes
MaterialSteel
Material thickness1,75 mm
Profile shapeC profile
Rustproof steel, pickledno
Slot width17 mm
Static value A1,17 cm²
Static value ly0,52 cm⁴
Static value lz0,53 cm⁴
Static value Wy2,33 cm³
Static value Wz1,33 cm³
SurfaceStrip galvanized
Type of perforationPerforated back
Version forSingle profile
Width35 mm
With perforationyes
With toothingno
