OBO BETTERMANN
>
VBS Connection and fastening systems - OBO BETTERMANN
>
Installation Profile
>
1104501
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

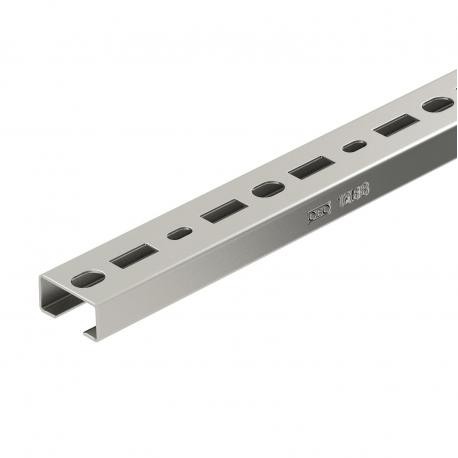

CML3518P2000A2 1104501 OBO BETTERMANN Profile rails perforated, slot width 17 mm, 2000x35x18, Stainless stee..
CML3518P2000A2
1104501
OBO BETTERMANN
2 m.
Profile rails perforated, slot width 17 mm, 2000x35x18, Stainless steel, grade 304, VA, 1.4301
Profile CML3518P2000A2, perfor., slot width 17mm 2000x35x18 Stainless steel 1.4301, A2, 1.4301, Polished, with subsequent treatment
Profile rail CML3518, slotted 17 mm, A2, perforated
Automation > Mounting rail/-profile
Installation Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Medium C-profile rail for cable routing, in combination with bow clamps with hammerhead base. Can also be used as a suspension construction for cable support systems.
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 2000 mm |
| Width (EF000008) | 35 mm |
| Height (EF000040) | 18 mm |
| Material thickness (EF000386) | 1.25 mm |
| Profile shape (EF005179) | C-profile |
| Type of perforation (EF004147) | Slotted |
| With toothing (EF000571) | No |
| Area moment of inertia Iy (EF012513) | 0.41 cm4 |
| Area of inertia Iz (EF012514) | 0.41 cm4 |
| Moment of resistance Wy (EF012503) | 1.81 cm³ |
| Moment of resistance Wz (EF012504) | 1.03 cm³ |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Stainless steel |
| Material quality (EF001257) | Rustproof and acidproof steel |
| Surface protection (EF000139) | Other |
| Weight (EF000167) | 0.71 kg |
