OBO BETTERMANN
>
VBS Connection and fastening systems - OBO BETTERMANN
>
Installation Profile
>
1104500
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

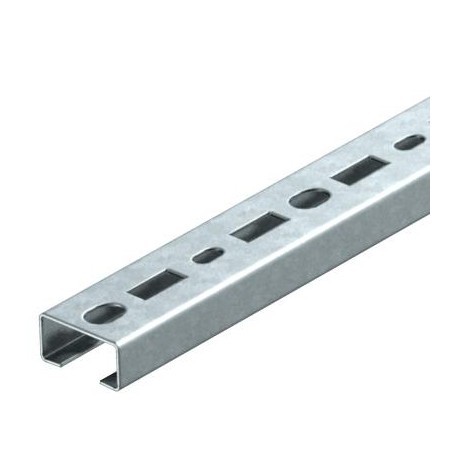

1268 L 2M FS 1104500 OBO BETTERMANN Profile rails perforated, slot width 17 mm, 2000x35x18, Strip-galvanised..
CML3518P2000FS
1104500
OBO BETTERMANN
2 m.
Profile rails perforated, slot width 17 mm, 2000x35x18, Strip-galvanised, DIN EN 10147, Steel, St
CML3518 profile rail, slot 17 mm, FS, perforated. Central C profile rail for cable routing, in conjunction with clamp clips with a hammerhead foot. Can also be used as suspension construction for cable support systems.
Automation > Mounting rail/-profile
Installation Profile
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Breakable | no |
|---|---|
| Bundle | 20 m |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,7671 kg CO2e / 1 Meter |
| Dimension | 2000x35x18 |
| Dimension L | 2000 mm |
| Drill hole spacing, centre | 25 mm |
| Height | 18 mm |
| Length | 2000 mm |
| Maintain electrical functions | yes |
| Material | Steel |
| Material thickness | 1,25 mm |
| Profile shape | C profile |
| Rustproof steel, pickled | no |
| Slot width | 17 mm |
|---|---|
| Static value A | 0,88 cm² |
| Static value ly | 0,41 cm⁴ |
| Static value lz | 1,81 cm⁴ |
| Static value Wy | 0,41 cm³ |
| Static value Wz | 1,03 cm³ |
| Surface | Strip galvanized |
| Type of perforation | Perforated back |
| Version for | Single profile |
| Width | 35 mm |
| With perforation | yes |
| With toothing | no |
