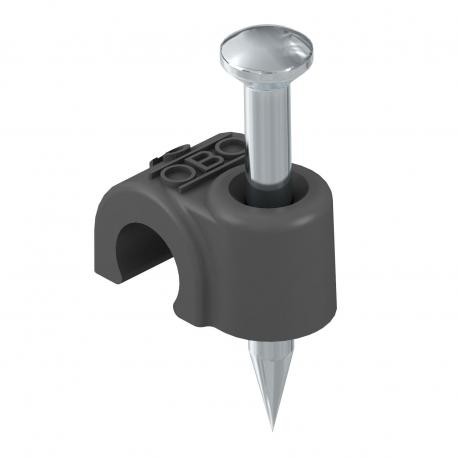

2008 25 SW 2232170 OBO BETTERMANN ISO nail clip , 8mm, L25, Jet black, 9005, Polypropylene, PP
2008 25 SW
2232170
OBO BETTERMANN
100 Pcs.
ISO nail clip , 8mm, L25, Jet black, 9005, Polypropylene, PP
2008 25 SW Grapillon, 8mm, L25 Polypropylene, PP,
ISO nail clip 2008, black. ISO nail clip, short design
Cables > Nail clip
Grapillones
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An ISO nail clip fastens round electrical cables against structural surfaces while providing built-in insulation properties to safeguard the wiring. This hardware is standard for clean surface-mounted electrical installations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Shape (EF000051): Round
- Double model (EF006531): No
- Pipe locking (EF005657): No
- With nail (EF000370): Yes
- Nail length (EF000371): 25 mm
- Hardened steel nail (EF001249): Yes
- Material (EF002169): Plastic
- Colour (EF000007): Black
- Transparent (EF006243): No
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0038 kg CO2e / 1 Piece |
|---|---|
| Colour | Jet black; RAL 9005 |
| Dimension | 8mm, L25 |
| Dimension B | 8 mm |
| Dimension H | 10,6 mm |
| Dimension L | 15 mm |
| Double clip | no |
| for cable diameter | 8 mm |
| For nail diameter | 2,0x25 |
| Halogen-free | yes |
|---|---|
| Hardened | yes |
| Impact-resistant | no |
| Material | Polypropylene |
| Nail length | 25 mm |
| Pipe locking | no |
| Shape | Round (for round conductor) |
| Transparent | no |
| With nail | yes |
