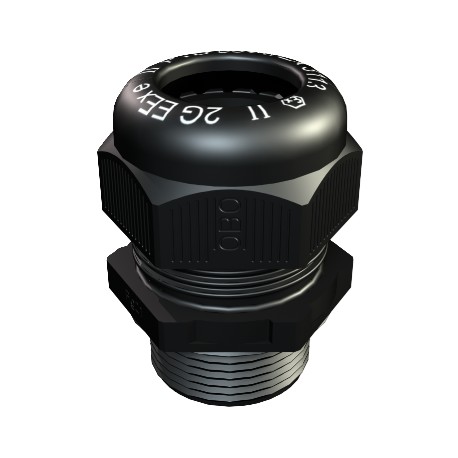

VTEC EX M40 SW 2050366 OBO BETTERMANN Cable gland, EX area , M40, Black, Polyamide, PA
VTEC EX M40 SW
2050366
OBO BETTERMANN
10 Pcs.
Cable gland, EX area , M40, Black, Polyamide, PA
Cable gland, EX area, metric thread, black. Cable gland with EU design type approval certificate for products and protection systems for use in accordance with the regulations in explosion-hazard area. Directive 2014/34/EU.EU design type approval certificate number: BKI23ATEX0030 X.With metric connecting thread to IEC 423.Sealing ring of chloroprene/nitrile rubber, moulded sealing, so no connection thread sealing ring needed. Protection IP 68 at 3 bar.
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3243 kg CO2e / 1 Piece |
| Colour | Black |
| Dimension | M40 |
| Dimension E | 60 mm |
| Dimension G | M40 mm |
| Dimension L max. | 54 mm |
| Dimension L min. | 39 mm |
| Dimension L1 | 13 mm |
| Dimension L2 | 8 mm |
| explosion-proof | yes |
| Fibre-glass reinforced | no |
| Flat cable gland | no |
| For Ex zone | yes |
| For Ex zone dust | 21, 22 |
| For Ex zone gas | 1, 2 |
| Halogen-free | yes |
| Hexagonal corner dimension | 60 mm |
| Impact-resistant | no |
| Material | Polyamide |
|---|---|
| Nominal thread size | 40 |
| Permitted temperature range, max. | 65 °C |
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP68 |
| Sealing area D, max. | 32 mm |
| Sealing area D, min. | 25 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | no |
| Thread | M40 x 1,5 |
| Thread increase | 1,5 mm |
| Thread length | 13 mm |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Unstable torque | 15 Nm |
| Version for | Straight |
| WAF | 53 |
| With locknut | no |
