View larger
Images are for illustrative purposes only. Please refer to data sheet for details

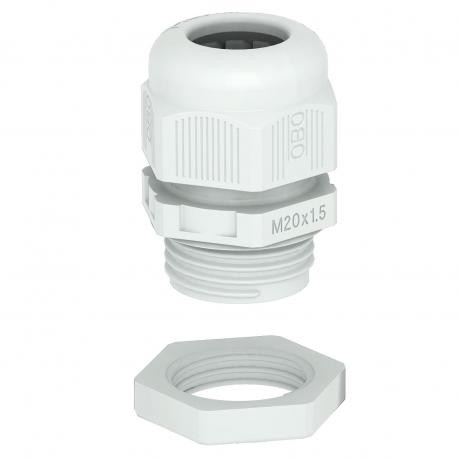

V-TEC VM63+ LGR 2022776 OBO BETTERMANN Cable gland with locknut, M63, Light grey, 7035, Polyamide, PA
V-TEC VM63+ LGR
2022776
OBO BETTERMANN
5 Pcs.
Cable gland with locknut, M63, Light grey, 7035, Polyamide, PA
V-TEC VM63+ LGR cable gland, with M63 Polyamide lock nut, PA,
Cable gland, metric thread, set with locknut, light grey. Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C. Including locknut.
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4821 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | M63 |
| Dimension E1 (mm) | 75 mm |
| Dimension E2 | 83 mm |
| Dimension L max. | 60 mm |
| Dimension L min. | 48 mm |
| Dimension L1 | 12 mm |
| Dimension L2 | 9 mm |
| Dimension L3 | 8,5 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Flat cable gland | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
| Impact-resistant | no |
| Material | Polyamide |
|---|---|
| Nominal thread size | 63 |
| Permitted temperature range, max. | 65 °C |
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP68 |
| Sealing area D, max. | 48 mm |
| Sealing area D, min. | 36 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | yes |
| Thread | M63 x 1,5 |
| Thread increase | 1,5 mm |
| Thread length | 12 mm |
| Thread type | Metric |
| Type of seal | Sealing ring |
| Unstable torque | 15 Nm |
| Version for | Straight |
| WAF 1 | 68 mm |
| WAF 2 | 75 mm |
| With locknut | no |
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | Metric |
| Nominal thread size metric/PG (EF007839) | 63 |
| Pitch thread (EF003712) | 1.5 mm |
| Thread length (EF000368) | 12 mm |
| Suitable for cable diameter (EF005466) | 36 mm |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyamide (PA) |
| Halogen free (EF000025) | Yes |
| Degree of protection (IP) (EF005474) | IP68 |
| Shock resistant (EF000084) | No |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Model (EF000010) | Straight |
| Multi seal area (EF005004) | No |
| Flat cable coupling (EF004685) | No |
| With strain relief (EF000878) | Yes |
| Type of sealing (EF001217) | EV009696 |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -20 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
