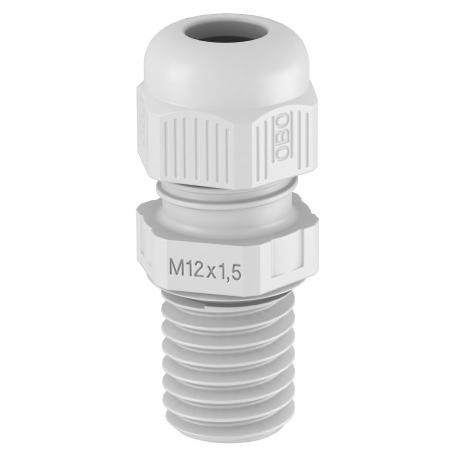

OBO BETTERMANN V-TEC VM L12 LGR V-TEC VM L12 LGR 2022943 OBO BETTERMANN Cable gland fully metric long, M12, Light grey, 7035, Polyamide, PA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

V-TEC VM L12 LGR 2022943 OBO BETTERMANN Cable gland fully metric long, M12, Light grey, 7035, Polyamide, PA

V-TEC VM L12 LGR

2022943

OBO BETTERMANN

50 Pcs.

Cable gland fully metric long, M12, Light grey, 7035, Polyamide, PA Cable gland, metric thread, long, light grey. Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

Cables > Cable gland
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing a compact metric entry point, the V-TEC VM L12 LGR 2022943 OBO BETTERMANN Cable gland fully metric long, M12, Light grey, 7035, Polyamide, PA secures lower-diameter instrumentation and sensor wiring. Polyamide gland construction offers corrosion resistance and dependable sealing for light industrial automation setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0272 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL 7035:
  • Dimension: M12
  • Dimension E: 16,5 mm
  • Dimension L max.: 24 mm
  • Dimension L min.: 17,5 mm
  • Dimension L1: 15 mm
  • Dimension L2: 5 mm
  • explosion-proof: no
  • Fibre-glass reinforced: no
  • Flame-resistant: acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
  • Flat cable gland: no
  • For Ex zone: Without
  • For Ex zone dust: Without
  • For Ex zone gas: Without

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,0272 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionM12
Dimension E16,5 mm
Dimension L max.24 mm
Dimension L min.17,5 mm
Dimension L115 mm
Dimension L25 mm
explosion-proofno
Fibre-glass reinforcedno
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable glandno
For Ex zoneWithout
For Ex zone dustWithout
For Ex zone gasWithout
Halogen-freeyes
Hexagonal corner dimension16,5 mm
Impact-resistantno
MaterialPolyamide
Nominal thread size12
Permitted temperature range, max.65 °C
Permitted temperature range, min.-20 °C
Protection ratingIP68
Sealing area D, max.7 mm
Sealing area D, min.3,5 mm
Sealing insert, multipleno
Splittable glandno
Strain relief optionyes
ThreadM12 x 1,5
Thread increase1,5 mm
Thread length15 mm
Thread typeMetric
Type of sealSealing ring
Unstable torque2 Nm
Version forStraight
WAF15
With locknutno
