View larger
Images are for illustrative purposes only. Please refer to data sheet for details

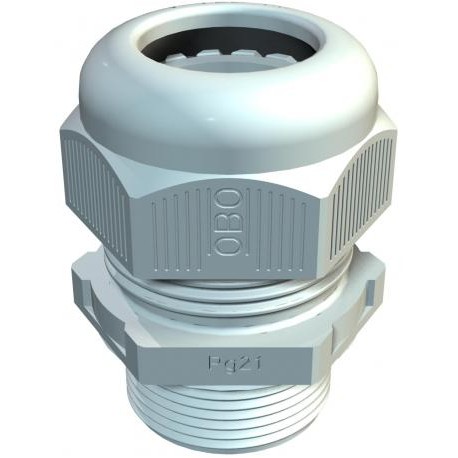

V-TEC L PG42 LGR 2024365 OBO BETTERMANN Cable gland with long connection thread, PG42, Light grey, 7035, Pol..
V-TEC L PG42 LGR
2024365
OBO BETTERMANN
5 Pcs.
Cable gland with long connection thread, PG42, Light grey, 7035, Polyamide, PA
V-TEC L PG42 LGR cable gland, with long thread PG42 Polyamide, PA,
Cable gland, long PG thread, light grey. Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
Cables > Cable gland
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend protection | no |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4733 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Dimension | PG42 |
| Dimension E | 68 mm |
| Dimension L max. | 57 mm |
| Dimension L min. | 42 mm |
| Dimension L1 | 18 mm |
| Dimension L2 | 9 mm |
| Dimension L3 | 32,5 mm |
| explosion-proof | no |
| Fibre-glass reinforced | no |
| Flat cable gland | no |
| For Ex zone | Without |
| For Ex zone dust | Without |
| For Ex zone gas | Without |
| Halogen-free | yes |
| Impact-resistant | no |
| Material | Polyamide |
| Nominal thread size | 42 |
|---|---|
| Permitted temperature range, max. | 65 °C |
| Permitted temperature range, min. | -20 °C |
| Protection rating | IP68 |
| Sealing area D, max. | 38 mm |
| Sealing area D, min. | 24 mm |
| Sealing insert, multiple | no |
| Splittable gland | no |
| Strain relief option | yes |
| Thread | Pg 42 |
| Thread increase | 1,5 mm |
| Thread length | 18 mm |
| Thread type | PG |
| Type of seal | Sealing ring |
| Unstable torque | 5 Nm |
| Version for | Straight |
| WAF | 60 |
| With locknut | no |
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | PG |
| Nominal thread size metric/PG (EF007839) | 42 |
| Pitch thread (EF003712) | 1.5 mm |
| Thread length (EF000368) | 18 mm |
| Wrench width (EF000177) | 60 mm |
| Suitable for cable diameter (EF005466) | 24 mm |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyamide (PA) |
| Halogen free (EF000025) | Yes |
| Degree of protection (IP) (EF005474) | IP68 |
| Shock resistant (EF000084) | No |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Model (EF000010) | Straight |
| Multi seal area (EF005004) | No |
| Flat cable coupling (EF004685) | No |
| With strain relief (EF000878) | Yes |
| Type of sealing (EF001217) | EV009696 |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -20 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
