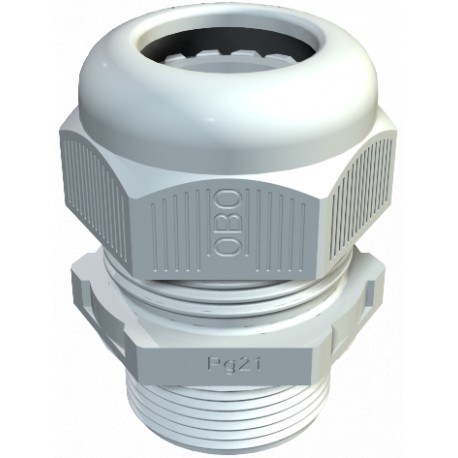

OBO BETTERMANN V-TEC L PG36 LGR V-TEC L PG36 LGR 2024357 OBO BETTERMANN Cable gland with long connection thread, PG36, Light grey, 7035, Pol.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

V-TEC L PG36 LGR 2024357 OBO BETTERMANN Cable gland with long connection thread, PG36, Light grey, 7035, Pol..

V-TEC L PG36 LGR

2024357

OBO BETTERMANN

10 Pcs.

Cable gland with long connection thread, PG36, Light grey, 7035, Polyamide, PA Cable gland, long PG thread, light grey. Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

Cables > Cable gland
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A cable gland with long connection thread by Obo Bettermann is deployed where thicker enclosure walls or adapter plates require extended thread reach for secure cable termination. This configuration ensures reliable fastening and ingress protection in heavy industrial panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,3599 kg CO2e / 1 Piece
  • Colour: Light grey; RAL 7035
  • Dimension: PG36
  • Dimension E: 60 mm
  • Dimension L max.: 54 mm
  • Dimension L min.: 39 mm
  • Dimension L1: 18 mm
  • Dimension L2: 8 mm
  • Dimension L3: 31 mm
  • explosion-proof: no
  • Fibre-glass reinforced: no
  • Flat cable gland: no
  • For Ex zone: Without
  • For Ex zone dust: Without
  • For Ex zone gas: Without

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,3599 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionPG36
Dimension E60 mm
Dimension L max.54 mm
Dimension L min.39 mm
Dimension L118 mm
Dimension L28 mm
Dimension L331 mm
explosion-proofno
Fibre-glass reinforcedno
Flat cable glandno
For Ex zoneWithout
For Ex zone dustWithout
For Ex zone gasWithout
Halogen-freeyes
Hexagonal corner dimension60 mm
Impact-resistantno
MaterialPolyamide
Nominal thread size36
Permitted temperature range, max.65 °C
Permitted temperature range, min.-20 °C
Protection ratingIP68
Sealing area D, max.32 mm
Sealing area D, min.18 mm
Sealing insert, multipleno
Splittable glandno
Strain relief optionyes
ThreadPg 36
Thread increase1,5 mm
Thread length18 mm
Thread typePG
Type of sealSealing ring
Unstable torque5 Nm
Version forStraight
WAF53
With locknutno
