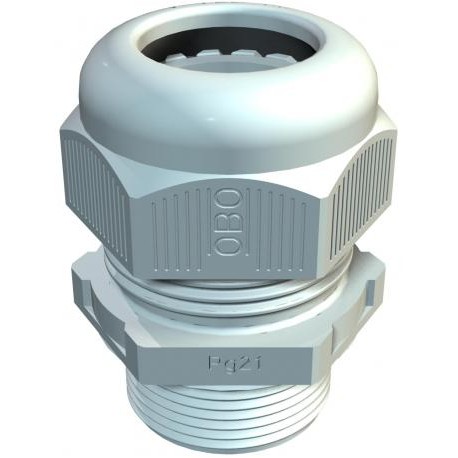

OBO BETTERMANN V-TEC L PG29 LGR V-TEC L PG29 LGR 2024349 OBO BETTERMANN Cable gland with long connection thread, PG29, Light grey, 7035, Pol.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

V-TEC L PG29 LGR 2024349 OBO BETTERMANN Cable gland with long connection thread, PG29, Light grey, 7035, Pol..

V-TEC L PG29 LGR

2024349

OBO BETTERMANN

20 Pcs.

Cable gland with long connection thread, PG29, Light grey, 7035, Polyamide, PA Cable gland, long PG thread, light grey. Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

Cables > Cable gland
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Utilizing an extended mounting thread, this V-TEC L PG29 LGR cable gland from Obo Bettermann accommodates thick enclosure walls or additional hardware like locknuts. Cable glands secure electrical wiring entering junction boxes, protecting internal terminations from strain, dust, and environmental ingress.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1809 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Dimension: PG29
  • Dimension E: 47,5 mm
  • Dimension L max.: 43 mm
  • Dimension L min.: 32 mm
  • Dimension L1: 15 mm
  • Dimension L2: 7 mm
  • Dimension L3: 24,5 mm
  • explosion-proof: no
  • Fibre-glass reinforced: no
  • Flat cable gland: no
  • For Ex zone: Without
  • For Ex zone dust: Without
  • For Ex zone gas: Without

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,1809 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionPG29
Dimension E47,5 mm
Dimension L max.43 mm
Dimension L min.32 mm
Dimension L115 mm
Dimension L27 mm
Dimension L324,5 mm
explosion-proofno
Fibre-glass reinforcedno
Flat cable glandno
For Ex zoneWithout
For Ex zone dustWithout
For Ex zone gasWithout
Halogen-freeyes
Hexagonal corner dimension47,5 mm
Impact-resistantno
MaterialPolyamide
Nominal thread size29
Permitted temperature range, max.65 °C
Permitted temperature range, min.-20 °C
Protection ratingIP68
Sealing area D, max.25 mm
Sealing area D, min.14 mm
Sealing insert, multipleno
Splittable glandno
Strain relief optionyes
ThreadPg 29
Thread increase1,5 mm
Thread length15 mm
Thread typePG
Type of sealSealing ring
Unstable torque5 Nm
Version forStraight
WAF42
With locknutno
