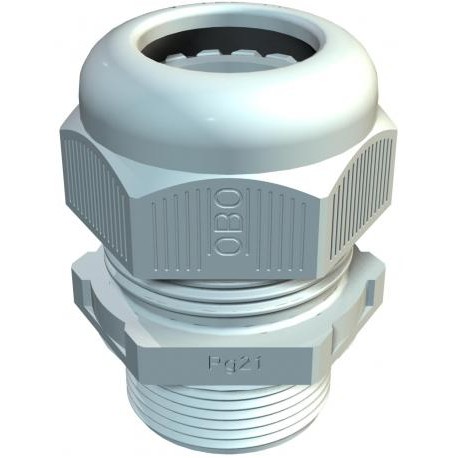

OBO BETTERMANN V-TEC L PG21 LGR V-TEC L PG21 LGR 2024330 OBO BETTERMANN Cable gland with long connection thread, PG21, Light grey, 7035, Pol.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

V-TEC L PG21 LGR 2024330 OBO BETTERMANN Cable gland with long connection thread, PG21, Light grey, 7035, Pol..

V-TEC L PG21 LGR

2024330

OBO BETTERMANN

25 Pcs.

Cable gland with long connection thread, PG21, Light grey, 7035, Polyamide, PA Cable gland, long PG thread, light grey. Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

Cables > Cable gland
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Featuring an extended screw thread, the V-TEC L PG21 LGR cable gland produced by Obo Bettermann facilitates secure routing of electrical lines through thicker enclosure walls. These components help maintain enclosure integrity by absorbing mechanical strain and sealing out foreign particles in industrial automation environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1134 kg CO2e / 1 Piece
  • Colour: Light grey; RAL 7035
  • Dimension: PG21
  • Dimension E: 37,5 mm
  • Dimension L max.: 38 mm
  • Dimension L min.: 28 mm
  • Dimension L1: 15 mm
  • Dimension L2: 6 mm
  • Dimension L3: 22 mm
  • explosion-proof: no
  • Fibre-glass reinforced: no
  • Flat cable gland: no
  • For Ex zone: Without
  • For Ex zone dust: Without
  • For Ex zone gas: Without

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,1134 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionPG21
Dimension E37,5 mm
Dimension L max.38 mm
Dimension L min.28 mm
Dimension L115 mm
Dimension L26 mm
Dimension L322 mm
explosion-proofno
Fibre-glass reinforcedno
Flat cable glandno
For Ex zoneWithout
For Ex zone dustWithout
For Ex zone gasWithout
Halogen-freeyes
Hexagonal corner dimension37,5 mm
Impact-resistantno
MaterialPolyamide
Nominal thread size21
Permitted temperature range, max.65 °C
Permitted temperature range, min.-20 °C
Protection ratingIP68
Sealing area D, max.18 mm
Sealing area D, min.9 mm
Sealing insert, multipleno
Splittable glandno
Strain relief optionyes
ThreadPg 21
Thread increase1,5 mm
Thread length15 mm
Thread typePG
Type of sealSealing ring
Unstable torque5 Nm
Version forStraight
WAF33
With locknutno
