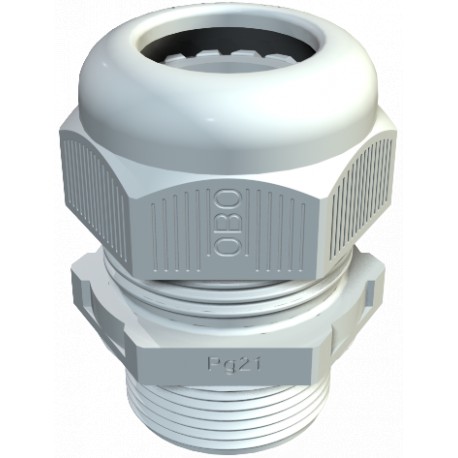

OBO BETTERMANN V-TEC L PG11 LGR V-TEC L PG11 LGR 2024306 OBO BETTERMANN Cable gland with long connection thread, PG11, Light grey, 7035, Pol.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

V-TEC L PG11 LGR 2024306 OBO BETTERMANN Cable gland with long connection thread, PG11, Light grey, 7035, Pol..

V-TEC L PG11 LGR

2024306

OBO BETTERMANN

50 Pcs.

Cable gland with long connection thread, PG11, Light grey, 7035, Polyamide, PA Cable gland, long PG thread, light grey. Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.

Cables > Cable gland
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann V-TEC L PG11 LGR cable gland features an extended connection thread for thicker enclosure walls. Long-thread cable glands facilitate secure mounting through insulated panels or heavy-duty junction boxes.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Bend protection: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0526 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Dimension: PG11
  • Dimension E: 25 mm
  • Dimension L max.: 29 mm
  • Dimension L min.: 22 mm
  • Dimension L1: 15 mm
  • Dimension L2: 5 mm
  • Dimension L3: 17 mm
  • explosion-proof: no
  • Fibre-glass reinforced: no
  • Flat cable gland: no
  • For Ex zone: Without
  • For Ex zone dust: Without
  • For Ex zone gas: Without

More info

▲
Bend protectionno
CO2 Footprint (GWP) Cradle-to-Gate0,0526 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionPG11
Dimension E25 mm
Dimension L max.29 mm
Dimension L min.22 mm
Dimension L115 mm
Dimension L25 mm
Dimension L317 mm
explosion-proofno
Fibre-glass reinforcedno
Flat cable glandno
For Ex zoneWithout
For Ex zone dustWithout
For Ex zone gasWithout
Halogen-freeyes
Hexagonal corner dimension25 mm
Impact-resistantno
MaterialPolyamide
Nominal thread size11
Permitted temperature range, max.65 °C
Permitted temperature range, min.-20 °C
Protection ratingIP68
Sealing area D, max.10 mm
Sealing area D, min.3,5 mm
Sealing insert, multipleno
Splittable glandno
Strain relief optionyes
ThreadPg 11
Thread increase1,5 mm
Thread length15 mm
Thread typePG
Type of sealSealing ring
Unstable torque2,5 Nm
Version forStraight
WAF22
With locknutno
