View larger
Images are for illustrative purposes only. Please refer to data sheet for details

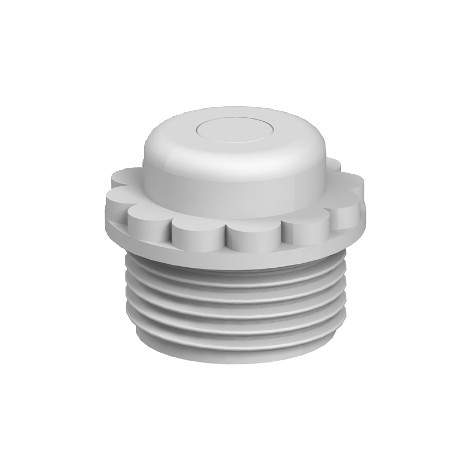

90 PG16 DSMB 2032546 OBO BETTERMANN Screw-in nipple with puncture membrane, PG16, Light grey, 7035, Polyethy..
90 PG16 DSMB
2032546
OBO BETTERMANN
100 Pcs.
Screw-in nipple with puncture membrane, PG16, Light grey, 7035, Polyethylene, PE
Threaded fitting 90 PG16 DSMB, with PG16 drilling membrane Polyethylene, PE,
Screw-in nipple, PG thread, with perforation membrane. With perforation membrane, the opening D is pre-marked, but closed.Grip seal to screw into PG thread to DIN 40430.With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required. Protection rating achievable with careful mounting: IP54.With perforation membranes, the opening D is pre-marked, but closed.
Cables > Cable plug sealing clamp
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0083 kg CO2e / 1 Piece |
|---|---|
| Colour | Light grey; RAL 7035 |
| Dimension | PG16 |
| Dimension D | 7 mm |
| Dimension E | 26 mm |
| Dimension L1 | 9,5 mm |
| Dimension L2 | 6 mm |
| Halogen-free | yes |
|---|---|
| Material | Polyethylene |
| Protection rating | IP54 |
| Size | Pg 16 |
| Thread length | 9,5 mm |
| WAF | 24 |
| Feature Name | Feature Value |
|---|---|
| Degree of protection (IP) (EF005474) | IP54 |
| Material (EF002169) | Plastic |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Grey |
| RAL-number (EF000116) | 7035 |
