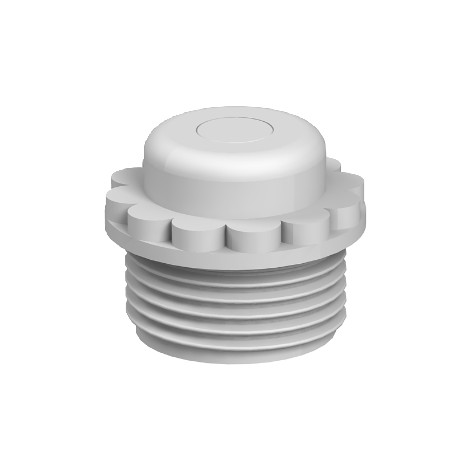

OBO BETTERMANN 90 PG11 DSMB 90 PG11 DSMB 2032511 OBO BETTERMANN Screw-in nipple with puncture membrane, PG11, Light grey, 7035, Polyethy.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

90 PG11 DSMB 2032511 OBO BETTERMANN Screw-in nipple with puncture membrane, PG11, Light grey, 7035, Polyethy..

90 PG11 DSMB

2032511

OBO BETTERMANN

100 Pcs.

Screw-in nipple with puncture membrane, PG11, Light grey, 7035, Polyethylene, PE Screw-in nipple, PG thread, with perforation membrane. With perforation membrane, the opening D is pre-marked, but closed.Grip seal to screw into PG thread to DIN 40430.With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required. Protection rating achievable with careful mounting: IP54.With perforation membranes, the opening D is pre-marked, but closed.

Cables > Cable plug sealing clamp
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for electrical junction boxes, the Obo Bettermann 90 PG11 DSMB screw-in nipple with puncture membrane provides a quick pass-through for cables while maintaining an effective dust and moisture seal for industrial wiring setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0053 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Dimension: PG11
  • Dimension D: 5 mm
  • Dimension E: 21 mm
  • Dimension L1: 9,5 mm
  • Dimension L2: 6 mm
  • Halogen-free: yes
  • Material: Polyethylene
  • Protection rating: IP54
  • Size: Pg 11
  • Thread length: 9,5 mm
  • WAF: 19

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0053 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionPG11
Dimension D5 mm
Dimension E21 mm
Dimension L19,5 mm
Dimension L26 mm
Halogen-freeyes
MaterialPolyethylene
Protection ratingIP54
SizePg 11
Thread length9,5 mm
WAF19
