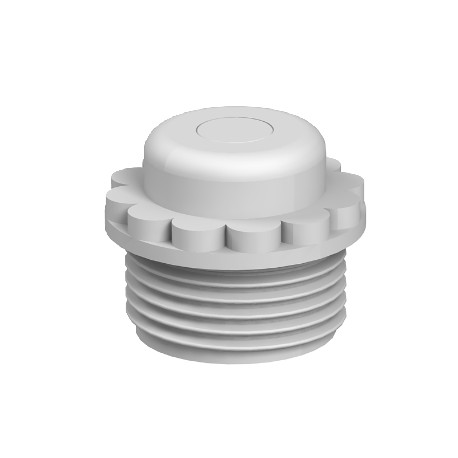

OBO BETTERMANN 90 PG 9 DSMB 90 PG 9 DSMB 2032503 OBO BETTERMANN Screw-in nipple with puncture membrane, PG9, Light grey, 7035, Polyethyl.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

90 PG 9 DSMB 2032503 OBO BETTERMANN Screw-in nipple with puncture membrane, PG9, Light grey, 7035, Polyethyl..

90 PG 9 DSMB

2032503

OBO BETTERMANN

100 Pcs.

Screw-in nipple with puncture membrane, PG9, Light grey, 7035, Polyethylene, PE Screw-in nipple, PG thread, with perforation membrane. With perforation membrane, the opening D is pre-marked, but closed.Grip seal to screw into PG thread to DIN 40430.With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required. Protection rating achievable with careful mounting: IP54.With perforation membranes, the opening D is pre-marked, but closed.

Cables > Cable plug sealing clamp
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The 90 PG 9 DSMB 2032503 OBO BETTERMANN Screw-in nipple with puncture membrane, PG9, Light grey, 7035, Polyethyl.. acts as a cable entry fitting for junction boxes and enclosures, allowing quick routing of wires while maintaining housing ratings. Such nipples are standard across commercial and industrial wiring setups.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0054 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Dimension: PG9
  • Dimension D: 4 mm
  • Dimension E: 19 mm
  • Dimension L1: 9,5 mm
  • Dimension L2: 6 mm
  • Halogen-free: yes
  • Material: Polyethylene
  • Protection rating: IP54
  • Size: Pg 9
  • Thread length: 9,5 mm
  • WAF: 17

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0054 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionPG9
Dimension D4 mm
Dimension E19 mm
Dimension L19,5 mm
Dimension L26 mm
Halogen-freeyes
MaterialPolyethylene
Protection ratingIP54
SizePg 9
Thread length9,5 mm
WAF17
