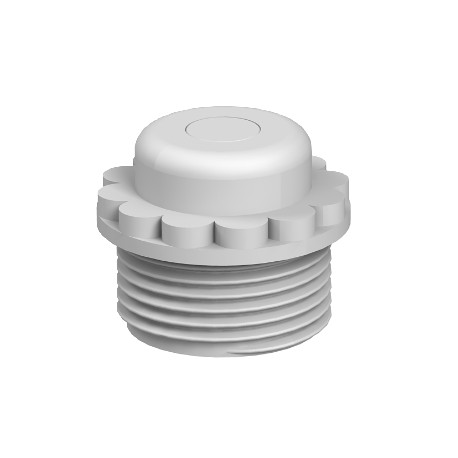

OBO BETTERMANN 90 M32 GE 90 M32 GE 2032386 OBO BETTERMANN Screw-in nipple closed version, M32, Light grey, 7035, Polyethylene, PE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

90 M32 GE 2032386 OBO BETTERMANN Screw-in nipple closed version, M32, Light grey, 7035, Polyethylene, PE

90 M32 GE

2032386

OBO BETTERMANN

25 Pcs.

Screw-in nipple closed version, M32, Light grey, 7035, Polyethylene, PE Screw-in nipple, metric thread, with perforation membrane. With perforation membranes, the opening D is pre-marked, but closed.Grip seal to screw into metric thread to IEC 423.With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required.Protection rating achievable with careful mounting: IP54.With perforation membranes, the opening D is pre-marked, but closed.

Cables > Cable plug sealing clamp
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann screw-in nipple closed version model 90 M32 GE provides a dependable entry point for cables and conduits in junction boxes and enclosures. Such components protect internal wiring from environmental factors and maintain enclosure integrity across industrial setups.

Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0214 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Dimension: M32
  • Dimension D: 13 mm
  • Dimension E: 39 mm
  • Dimension L1: 14 mm
  • Dimension L2: 8 mm
  • Halogen-free: yes
  • Material: Polyethylene
  • Protection rating: IP54
  • Size: M32
  • Thread length: 14 mm
  • WAF: 34

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0214 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionM32
Dimension D13 mm
Dimension E39 mm
Dimension L114 mm
Dimension L28 mm
Halogen-freeyes
MaterialPolyethylene
Protection ratingIP54
SizeM32
Thread length14 mm
WAF34
