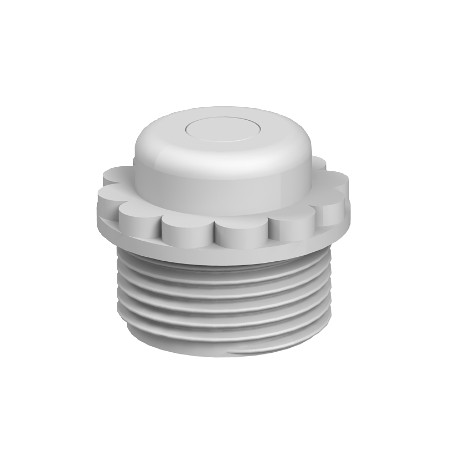

OBO BETTERMANN 90 M20 GE 90 M20 GE 2032382 OBO BETTERMANN Screw-in nipple closed version, M20, Light grey, 7035, Polyethylene, PE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

90 M20 GE 2032382 OBO BETTERMANN Screw-in nipple closed version, M20, Light grey, 7035, Polyethylene, PE

90 M20 GE

2032382

OBO BETTERMANN

100 Pcs.

Screw-in nipple closed version, M20, Light grey, 7035, Polyethylene, PE Screw-in nipple, metric thread, with perforation membrane. With perforation membranes, the opening D is pre-marked, but closed.Grip seal to screw into metric thread to IEC 423.With self-sealing cone at the end of the thread, therefore no connection thread sealing ring required.Protection rating achievable with careful mounting: IP54.With perforation membranes, the opening D is pre-marked, but closed.

Cables > Cable plug sealing clamp
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This 90 M20 GE 2032382 OBO BETTERMANN Screw-in nipple closed version provides an efficient sealing solution for unused or incoming cable knockouts in electrical housings. Screw-in nipples are standard components used by technicians to quickly seal enclosure openings while maintaining basic environmental protection ratings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0072 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Dimension: M20
  • Dimension D: 7 mm
  • Dimension E: 24 mm
  • Dimension L1: 10 mm
  • Dimension L2: 6 mm
  • Halogen-free: yes
  • Material: Polyethylene
  • Protection rating: IP54
  • Size: M20
  • Thread length: 10 mm
  • WAF: 21

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0072 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionM20
Dimension D7 mm
Dimension E24 mm
Dimension L110 mm
Dimension L26 mm
Halogen-freeyes
MaterialPolyethylene
Protection ratingIP54
SizeM20
Thread length10 mm
WAF21
