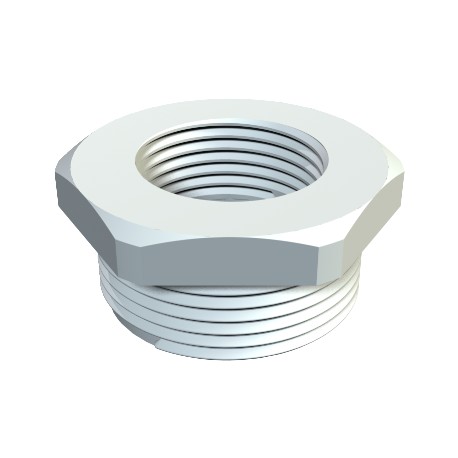

OBO BETTERMANN 107 R PG36-21 PA 107 R PG36-21 PA 2030829 OBO BETTERMANN Reduction , PG36-PG21, Light grey, 7035, Polyamide, PA View larger
Images are for illustrative purposes only. Please refer to data sheet for details

107 R PG36-21 PA 2030829 OBO BETTERMANN Reduction , PG36-PG21, Light grey, 7035, Polyamide, PA

107 R PG36-21 PA

2030829

OBO BETTERMANN

25 Pcs.

Reduction , PG36-PG21, Light grey, 7035, Polyamide, PA Reduction, PG thread. Reduction with PG internal and external thread to DIN 40430 for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.

Cables > Enlargement/reducing ring
Gls Plastic

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann 107 R PG36-21 PA reduction adapter is designed to connect mismatched PG-threaded entry ports on junction boxes and control housings. These thread adapters provide a reliable mechanical link, allowing technicians to scale down port dimensions safely. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,1122 kg CO2e / 1 Piece
  • Colour: Light grey
  • RAL: 7035
  • Dimension: PG36-PG21
  • Dimension D: 21 mm
  • Dimension E: 54 mm
  • Dimension L1: 13 mm
  • Dimension L2: 6 mm
  • Dimension L3: 12,5 mm
  • explosion-proof: no
  • Halogen-free: yes
  • Material: Polyamide
  • Nickel-plated: no
  • Thread dimension, PG, external: 36
  • Thread dimension, PG, internal: 21
  • Thread length: 13 mm
  • Thread type: External thread: PG

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,1122 kg CO2e / 1 Piece
ColourLight grey; RAL 7035
DimensionPG36-PG21
Dimension D21 mm
Dimension E54 mm
Dimension L113 mm
Dimension L26 mm
Dimension L312,5 mm
explosion-proofno
Halogen-freeyes
MaterialPolyamide
Nickel-platedno
Thread dimension, PG, external36
Thread dimension, PG, internal21
Thread length13 mm
Thread type: External threadPG
Thread type: Internal threadPG
WAF50
