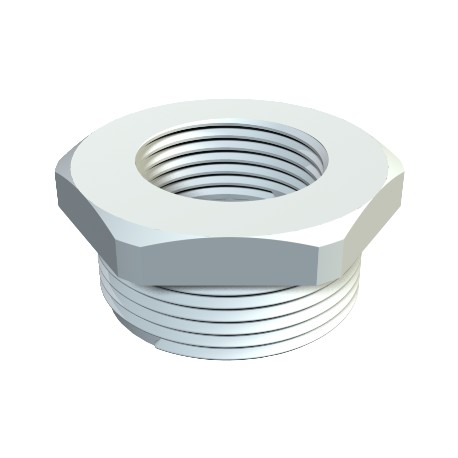

107 R PG29-16 PA 2030799 OBO BETTERMANN Reduction , PG29-PG16, Light grey, 7035, Polyamide, PA
107 R PG29-16 PA
2030799
OBO BETTERMANN
50 Pcs.
Reduction , PG29-PG16, Light grey, 7035, Polyamide, PA
Reduction, PG thread. Reduction with PG internal and external thread to DIN 40430 for mounting plastic cable glands on enclosures. Protection class IP54 without additional connecting seal. Protection class up to IP68 possible with additional connecting seal, e.g. O-ring or flat sealing ring.
Cables > Enlargement/reducing ring
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0586 kg CO2e / 1 Piece |
|---|---|
| Colour | Light grey; RAL 7035 |
| Dimension | PG29-PG16 |
| Dimension D | 16,5 mm |
| Dimension E | 40 mm |
| Dimension L1 | 11 mm |
| Dimension L2 | 6 mm |
| Dimension L3 | 13,5 mm |
| explosion-proof | no |
| Halogen-free | yes |
|---|---|
| Material | Polyamide |
| Nickel-plated | no |
| Thread dimension, PG, external | 29 |
| Thread dimension, PG, internal | 16 |
| Thread length | 11 mm |
| Thread type: External thread | PG |
| Thread type: Internal thread | PG |
| WAF | 40 |
