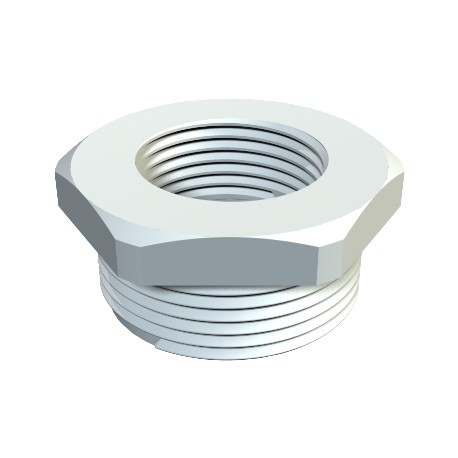

107 R PG21-13 PA 2030772 OBO BETTERMANN Reduction , PG21-PG13,5, Light grey, 7035, Polyamide, PA
107 R PG21-13 PA
2030772
OBO BETTERMANN
50 Pcs.
Cables > Enlargement/reducing ring
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
PG-to-PG reduction bushings molded from durable polyamide provide lightweight adaptation for specialized electrical wiring tasks. Installers use these components to bridge non-standard conduit thread sizes across various panels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,0336 kg CO2e / 1 Piece
- Colour: Light grey
- RAL 7035:
- Dimension: PG21-PG13,5
- Dimension D: 13,5 mm
- Dimension E: 35,5 mm
- Dimension L1: 11 mm
- Dimension L2: 5 mm
- Dimension L3: 11 mm
- explosion-proof: no
- Halogen-free: yes
- Material: Polyamide
- Nickel-plated: no
- Thread dimension, PG, external: 21
- Thread dimension, PG, internal: 13,5
- Thread length: 11 mm
- Thread type: External thread: PG
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,0336 kg CO2e / 1 Piece |
|---|---|
| Colour | Light grey; RAL 7035 |
| Dimension | PG21-PG13,5 |
| Dimension D | 13,5 mm |
| Dimension E | 35,5 mm |
| Dimension L1 | 11 mm |
| Dimension L2 | 5 mm |
| Dimension L3 | 11 mm |
| explosion-proof | no |
| Halogen-free | yes |
|---|---|
| Material | Polyamide |
| Nickel-plated | no |
| Thread dimension, PG, external | 21 |
| Thread dimension, PG, internal | 13,5 |
| Thread length | 11 mm |
| Thread type: External thread | PG |
| Thread type: Internal thread | PG |
| WAF | 32 |
