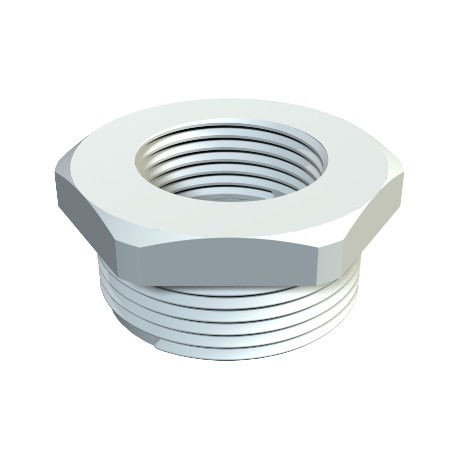

107 R M63-50 PA 2030675 OBO BETTERMANN Reduction , M63-M50, Light grey, 7035, Polyamide, PA
107 R M63-50 PA
2030675
OBO BETTERMANN
25 Pcs.
Cables > Enlargement/reducing ring
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
As a threaded reduction adapter, the Obo Bettermann 107 R M63-50 PA enables seamless conversion between different metric sizes for electrical cable entries. Components like this are standard in industrial panel building to solve mismatch issues between standard knockouts and specific gland dimensions. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,1167 kg CO2e / 1 Piece
- Colour: Light grey
- RAL: 7035
- Dimension: M63-M50
- Dimension E: 75 mm
- Dimension L: 18 mm
- Dimension L1: 12 mm
- Dimension L2: 6 mm
- Dimension L3: 18 mm
- explosion-proof: no
- Halogen-free: yes
- Material: Polyamide
- Nickel-plated: no
- Thread dimension, metric, external: 63
- Thread dimension, metric, internal: 50
- Thread length: 12 mm
- Thread type: External thread: Metric
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,1167 kg CO2e / 1 Piece |
|---|---|
| Colour | Light grey; RAL 7035 |
| Dimension | M63-M50 |
| Dimension E | 75 mm |
| Dimension L | 18 mm |
| Dimension L1 | 12 mm |
| Dimension L2 | 6 mm |
| Dimension L3 | 18 mm |
| explosion-proof | no |
| Halogen-free | yes |
|---|---|
| Material | Polyamide |
| Nickel-plated | no |
| Thread dimension, metric, external | 63 |
| Thread dimension, metric, internal | 50 |
| Thread length | 12 mm |
| Thread type: External thread | Metric |
| Thread type: Internal thread | Metric |
| WAF | 68 |
