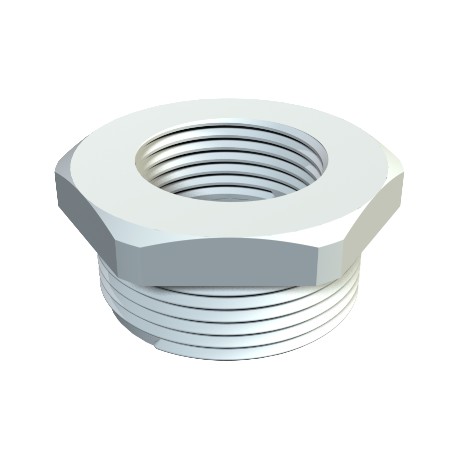

107 R M63-40 PA 2030673 OBO BETTERMANN Reduction , M63-M40, Light grey, 7035, Polyamide, PA
107 R M63-40 PA
2030673
OBO BETTERMANN
25 Pcs.
Cables > Enlargement/reducing ring
Gls Plastic
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Obo Bettermann 107 R M63-40 PA reduction component serves as a threaded adapter designed to accommodate different thread sizes within industrial cable entry configurations. Such fittings are commonly utilized in control cabinets and junction boxes to securely bridge varying port dimensions while maintaining proper mechanical integrity. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 0,1202 kg CO2e / 1 Piece
- Colour: Light grey
- RAL: 7035
- Dimension: M63-M40
- Dimension E: 75 mm
- Dimension L: 18 mm
- Dimension L1: 12 mm
- Dimension L2: 6 mm
- Dimension L3: 18 mm
- explosion-proof: no
- Halogen-free: yes
- Material: Polyamide
- Nickel-plated: no
- Thread dimension, metric, external: 63
- Thread dimension, metric, internal: 40
- Thread length: 12 mm
- Thread type: External thread: Metric
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 0,1202 kg CO2e / 1 Piece |
|---|---|
| Colour | Light grey; RAL 7035 |
| Dimension | M63-M40 |
| Dimension E | 75 mm |
| Dimension L | 18 mm |
| Dimension L1 | 12 mm |
| Dimension L2 | 6 mm |
| Dimension L3 | 18 mm |
| explosion-proof | no |
| Halogen-free | yes |
|---|---|
| Material | Polyamide |
| Nickel-plated | no |
| Thread dimension, metric, external | 63 |
| Thread dimension, metric, internal | 40 |
| Thread length | 12 mm |
| Thread type: External thread | Metric |
| Thread type: Internal thread | Metric |
| WAF | 68 |
